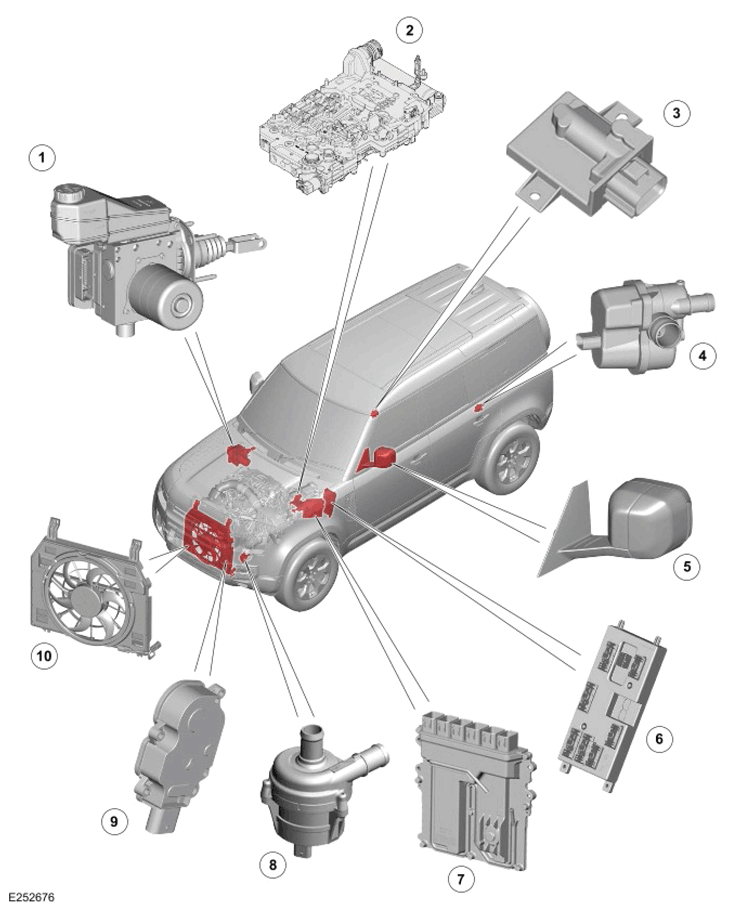

Component Location - 1 Of 5
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Integrated Power Brake control module |
| 2 | Transmission Control Module (TCM) |
| 3 | Fuel Pump Driver Module (FPDM) |
| 4 | Diagnostic Module Tank Leakage (DMTL) pump (North American Specification (NAS) market vehicles only) |
| 5 | Ambient Air Temperature (AAT) sensor |
| 6 | Body Control Module (BCM)/Gateway Module A (GWM) |
| 7 | Powertrain Control Module (PCM) |
| 8 | Charge air coolant pump |
| 9 | Active grille air shutter motor (if equipped) |
| 10 | Electric cooling fan |
