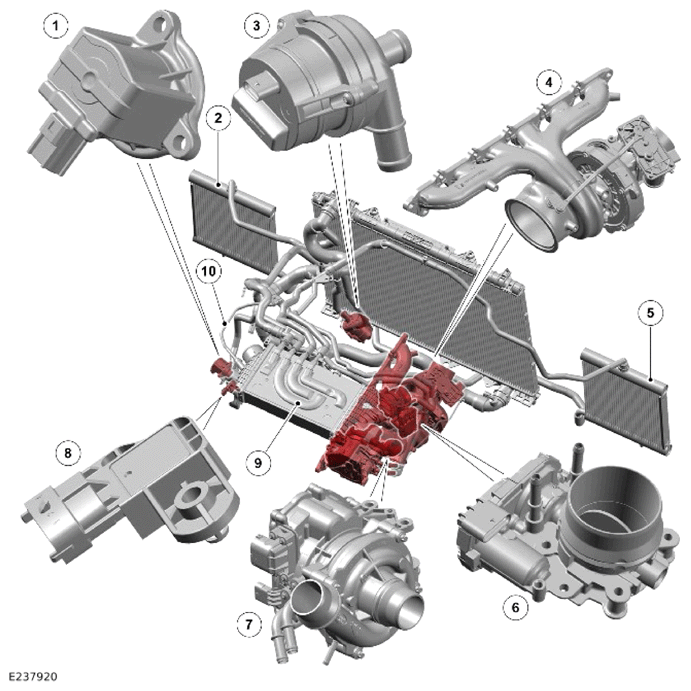

Component Location
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Compressor Recirculation Valve (CRV) |
| 2 | Left charge air radiator |
| 3 | Charge air coolant pump |
| 4 | Turbocharger |
| 5 | Right charge air radiator |
| 6 | Electric supercharger bypass valve |
| 7 | Electric supercharger |
| 8 | Charge air pressure and temperature sensor |
| 9 | Charge air cooler |
| 10 | Evaporative emission pipe |
