Fuel Tank And Lines - V8 S/C 5.0L Petrol (G2796783): Specifications

GENERAL SPECIFICATIONS

ITEM	SPECIFICATIONS
Fuel system	Electronic - returnless
Fuel tank	Multi layer plastic

DESCRIPTION	CAPACITY
Fuel tank capacity	90 Liters	158 Pints	95 US Quarts

Torque Specification

NOTE: Fuel tank for the 110 model variant.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

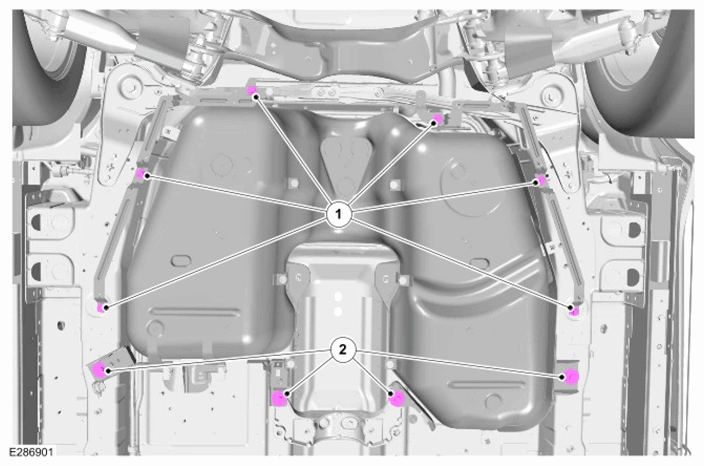

1	Fuel tank undershield rear bracket bolts	10	7	-
2	Fuel tank undershield front bracket bolts	10	7	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

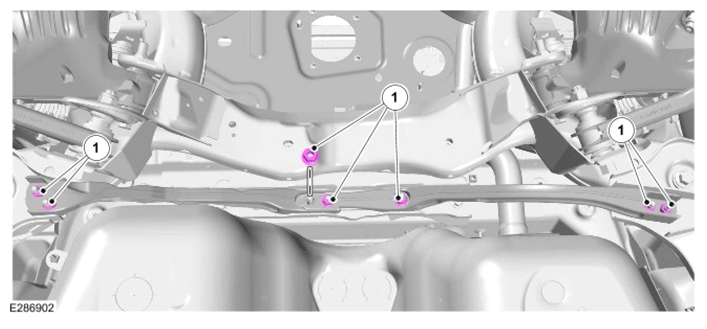

1	Fuel tank rear bracket nuts	48	35	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

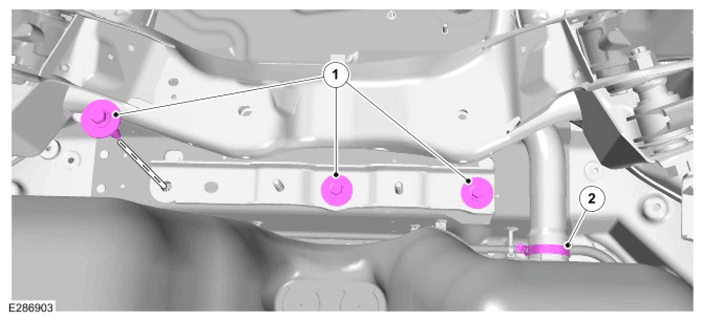

1	Fuel tank rear center bracket bolts	48	35	-
2	Fuel filler hose clamp	3.5	-	31

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

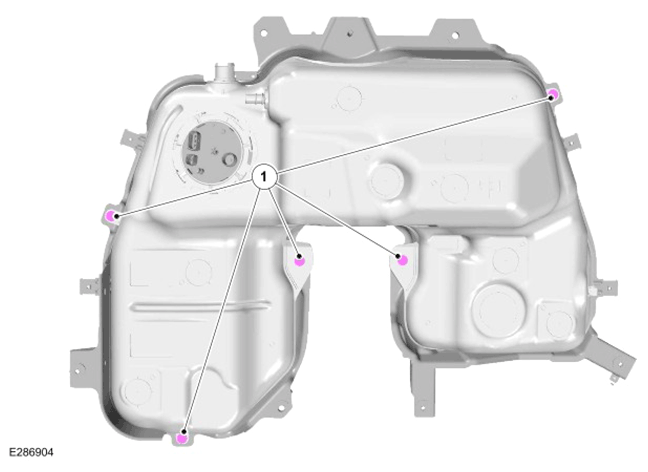

1	Heatshield to fuel tank bolts	10	7	-

NOTE: Fuel tank for the 90 model variant.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

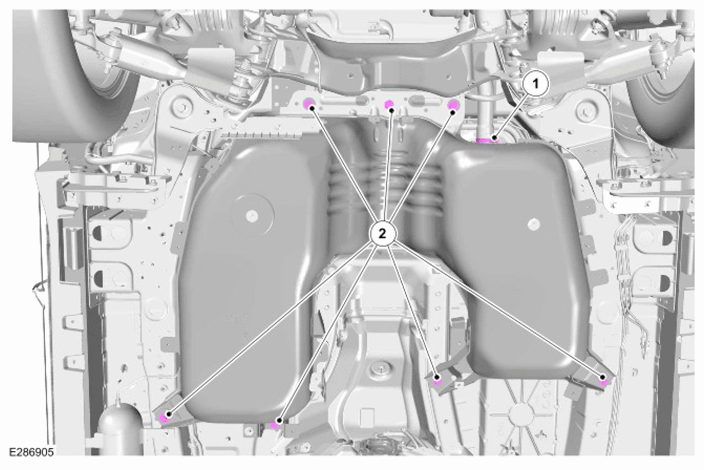

1	Fuel filler hose clamp	3.5	-	31
2	Fuel tank to body bolts	48	35	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

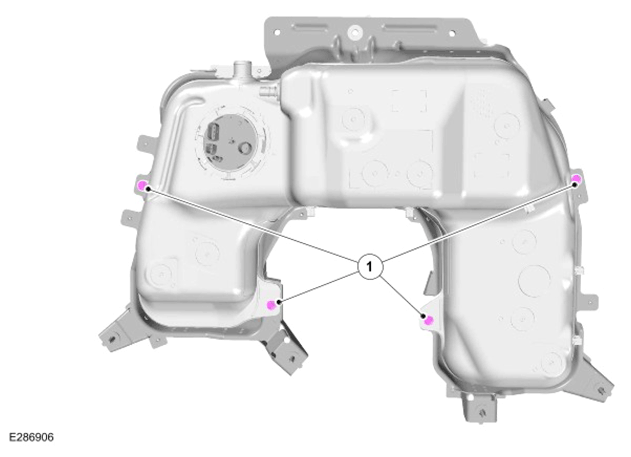

1	Heatshield to fuel tank bolts	10	7	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

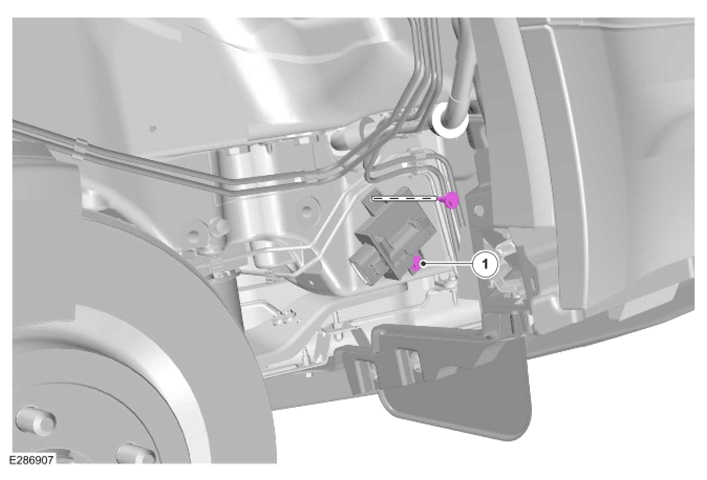

	DESCRIPTION	NM	LB-FT	LB-IN
1	Fuel Pump Driver Module (FPDM) bolts	10	7	-

NOTE: Numbers with green background are single use components.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM		LB-FT

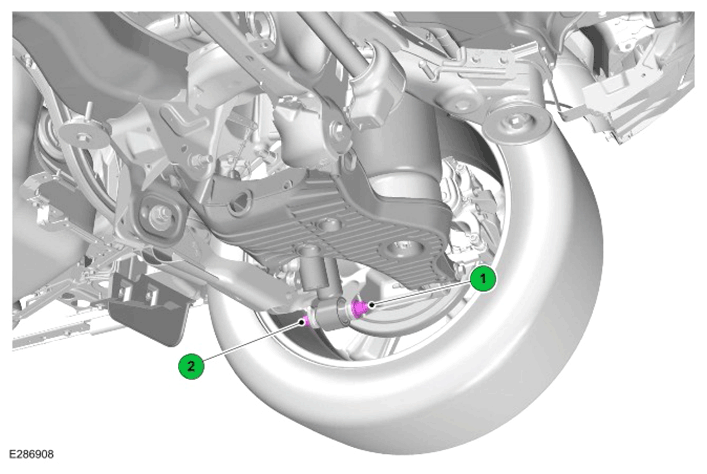

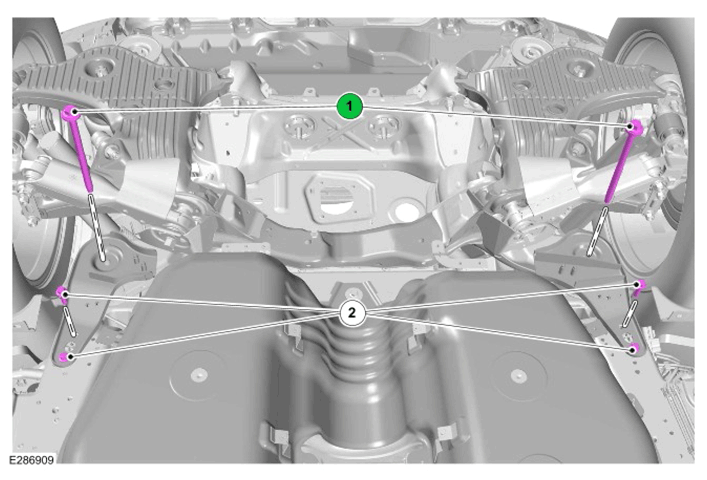

1	Shock absorber nut	Stage 1 - 100 Nm	Stage 2 - 240 Degrees	Stage 1 - 74 lb-ft	Stage 2 - 240 Degrees
2	Shock absorber bolt	Stage 1 - 100 Nm	Stage 2 - 240 Degrees	Stage 1 - 74 lb-ft	Stage 2 - 240 Degrees

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM		LB-FT
1	Subframe rear bolts	Stage 1 - 100 Nm	Stage 2 - 300 Degrees	Stage 1 - 74 lb-ft	Stage 2 - 300 Degrees
2	Support bracket bolts	60		44

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

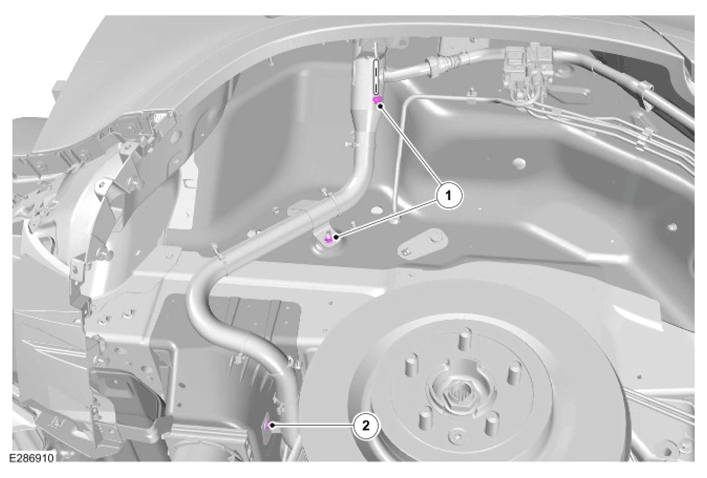

	DESCRIPTION	NM	LB-FT	LB-IN
1	Fuel filler neck to body nuts	10	7	-
2	Fuel filler neck to body bolt	10	7	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

	DESCRIPTION	NM	LB-FT	LB-IN

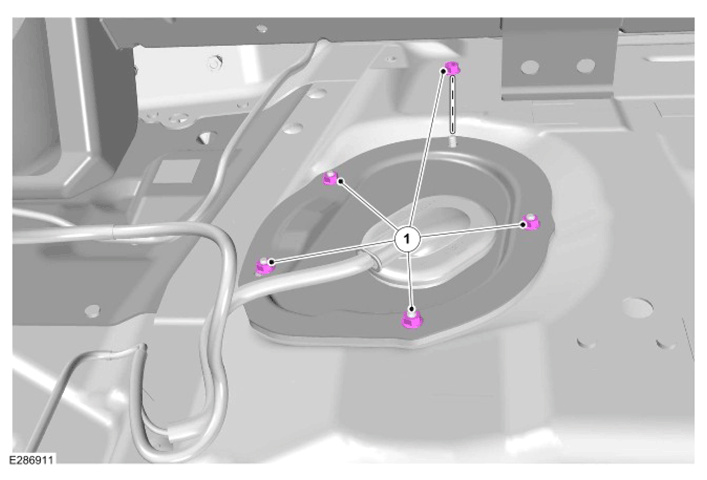

1	Fuel tank access panel nuts	6	-	53
