Fuel Supply Line (G2796790): Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Release the fuel pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE
- Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
-
CAUTION: Be prepared to collect escaping fuel.

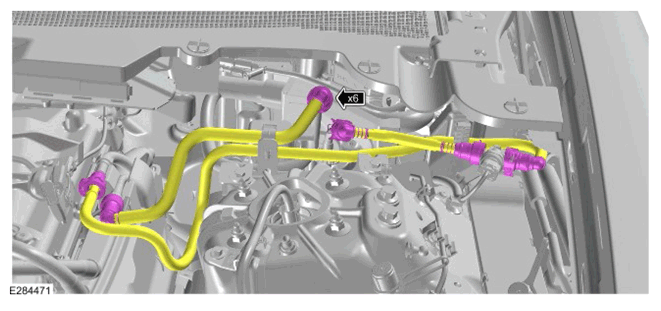

Disconnect the 6 fuel supply line connectors.

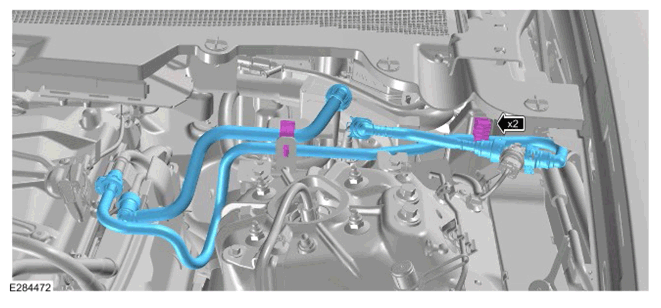

- Release the 2 clips.
- Remove the fuel supply line.
