Fuel Pump Driver Module (G2796786): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
- Remove the rear right wheel arch liner.
Refer to: REAR WHEEL ARCH LINER

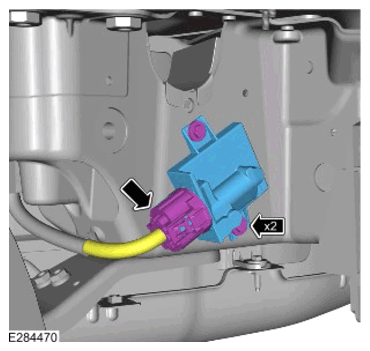

- Disconnect the electrical connector.
- Remove the 2 bolts.
- Remove the Fuel Pump Driver Module (FPDM).
