Component Location - 3 Of 4 - Fuel Supply Line

WARNING: This page is about a different variant/trim than selected.

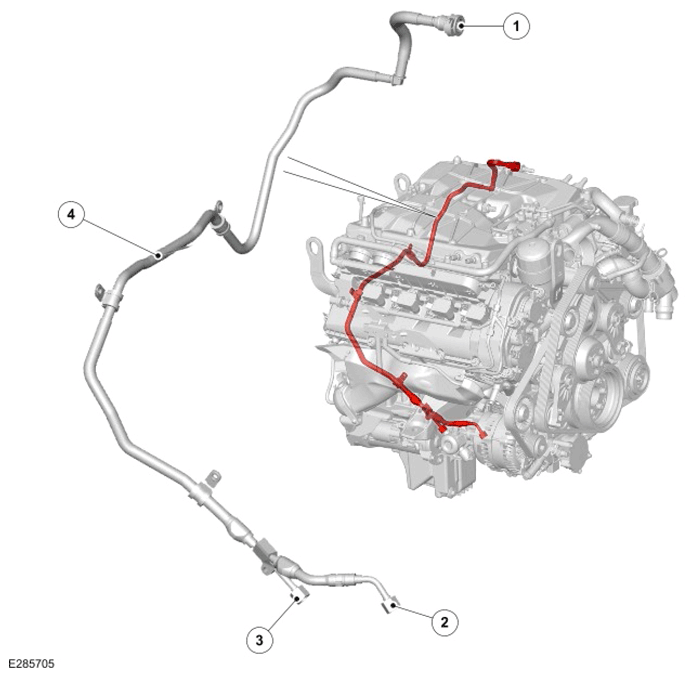

G15308095Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Fuel supply line connection - To fuel tank
2 Fuel supply line connection - To front HP  fuel pump
3 Fuel supply line connection - To rear HP  fuel pump
4 Fuel supply line
