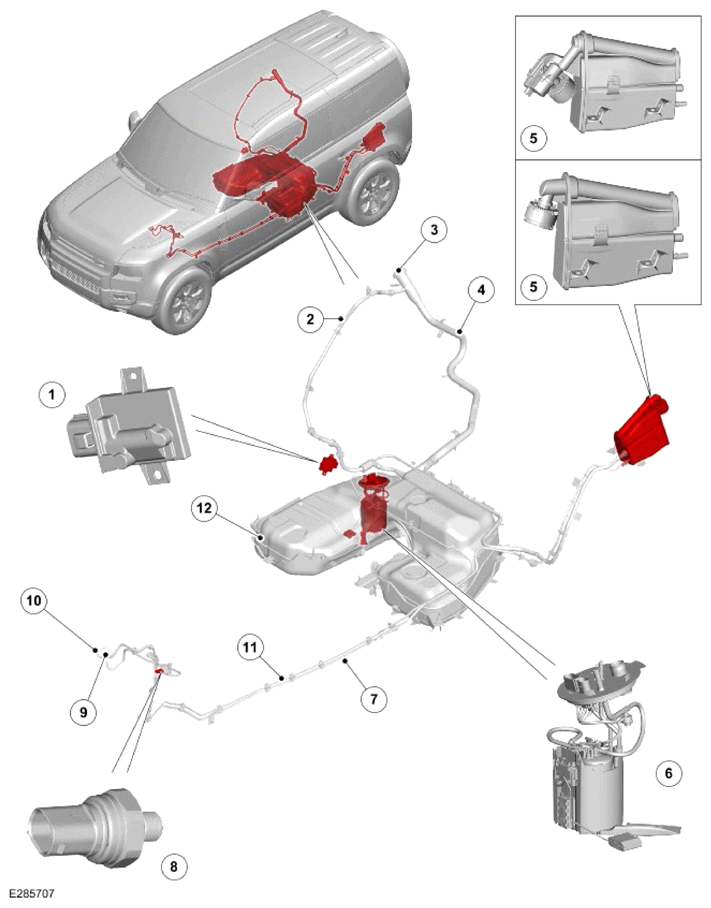

Component Location - 1 Of 4 - Vehicle With 5 Doors
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel Pump Driver Module (FPDM) |
| 2 | Fuel tank breather pipe |
| 3 | Fuel filler cap |
| 4 | Fuel filler pipe |
| 5 | Evaporative emission canister (North American Specification or Rest of World Market Vehicles) |
| 6 | Low Pressure (LP) fuel pump assembly |
| 7 | Purge line |
| 8 | Low fuel pressure sensor |
| 9 | Purge line connection - To purge valve |
| 10 | Fuel supply line connection - To High Pressure (HP) fuel pump |
| 11 | Fuel supply line |
| 12 | Fuel tank assembly |
