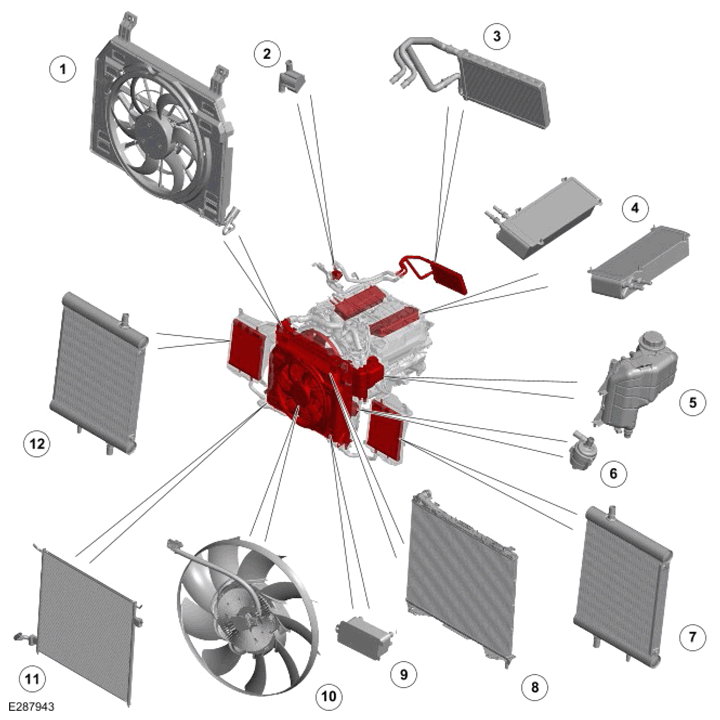

Component Location - 1 Of 2
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Electric cooling fan |
| 2 | Auxiliary coolant pump |
| 3 | Heater core |
| 4 | Charge air cooler (quantity 2) |
| 5 | Coolant expansion tank |
| 6 | Charge air coolant pump |
| 7 | Auxiliary radiator - Charge air circuit |
| 8 | Radiator |
| 9 | Automatic Transmission Fluid (ATF) cooler |
| 10 | Viscous cooling fan |
| 11 | Charge air radiator |
| 12 | Auxiliary radiator - Engine cooling circuit |
