Fuel Charging And Controls - INGENIUM I6 3.0L Petrol (G2344348): Specifications
WARNING: This page is about a different variant/trim than selected.
| COMPONENT TORQUE LOCATION |
|---|
TORQUE SPECIFICATIONS

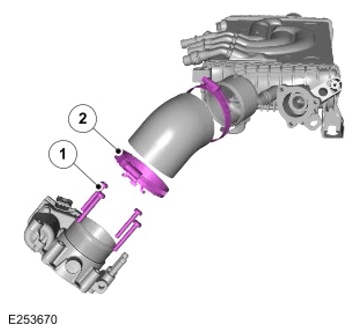

| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|
| 1 | Throttle body bolts | 11, 5 | 8, 5 | - |
| 2 | Air intake hose clamps | 3, 5 | - | 31 |
TORQUE SPECIFICATIONS

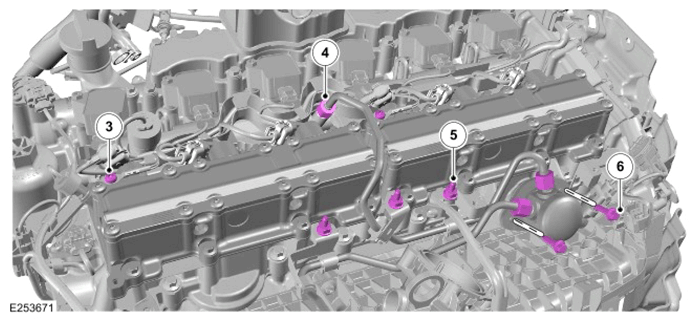

| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|
| 3 | Engine wiring harness ground bolts | 7 | - | 62 |
| 4 | Fuel line unions | 20 | 15 | - |
| 5 | Fuel line bracket studs | 11, 5 | 8, 5 | - |
| 6 | High Pressure (HP) fuel pump bolts | 14 | 10 | - |
NOTE:
A
- refer to the procedure for the correct torque sequence.
TORQUE SPECIFICATIONS

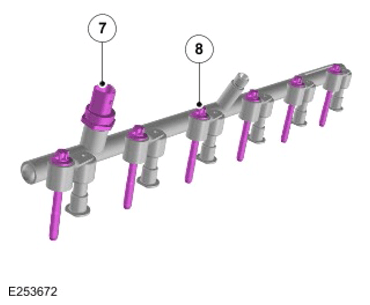

| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|
| 7 | Fuel pressure sensor | 38 | 28 | - |
| 8 | Fuel rail bolts | A** | - | A** |
