Throttle Body (G2300693): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Position the charge air cooler into the service position.
Refer to: CHARGE AIR COOLER SERVICE POSITION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

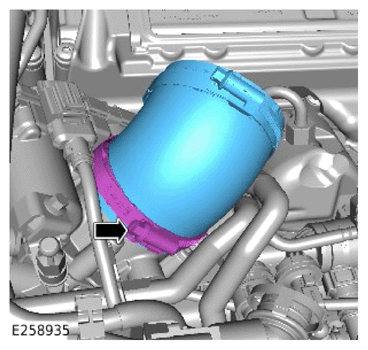

- Release the hose clamp.
- Remove the air intake hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

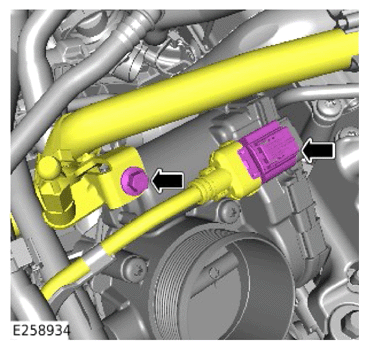

- Disconnect the electrical connector.
- Remove the coolant hose bracket bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

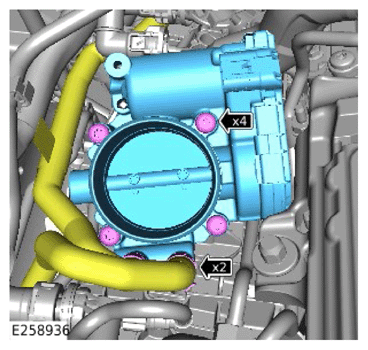

- Disconnect the 2 coolant hoses.
- Remove the 4 bolts.
- Remove the throttle body.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

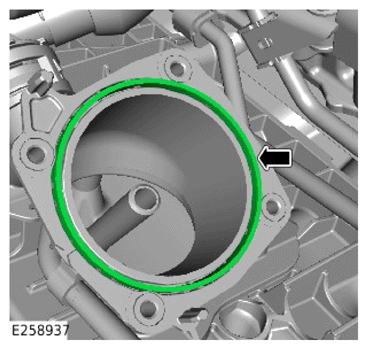

Remove and discard the throttle body seal.
