Fuel Pump Driver Module (G3334288): Removal

WARNING: This page is about a different variant/trim than selected.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the rear right wheel arch liner.
Refer to: REAR WHEEL ARCH LINER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

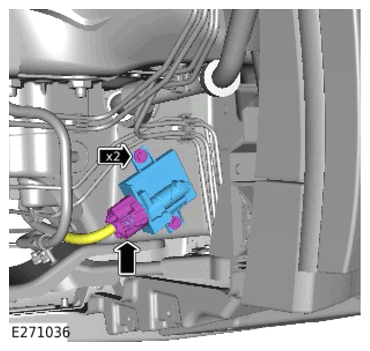

- Disconnect the Fuel Pump Driver Module (FPDM) electrical connector.
- Remove the 2 bolts.
- Remove the FPDM .
