Fuel Injectors (G2344597): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: New fuel injector replacement kits must be installed.

Installation steps 2 to 6 must be completed for each of the fuel injectors.

Renew Part: Fuel injector refit kit Quantity: 6 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the new fuel injector O-ring seal and washer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool JLR-310-257 to the fuel injector with the 'T' symbol towards the top of the fuel injector as shown.

Special Tool(s): JLR-310-257
CAUTION: Wait 2 minutes to allow the Teflon seal to recover its shape.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool 310-198 to install the new Teflon seal to the fuel injector.

Special Tool(s): 310-198
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
  Special Tool(s): JLR-310-257
- Check the Teflon seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the new fuel injector retainer.
NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

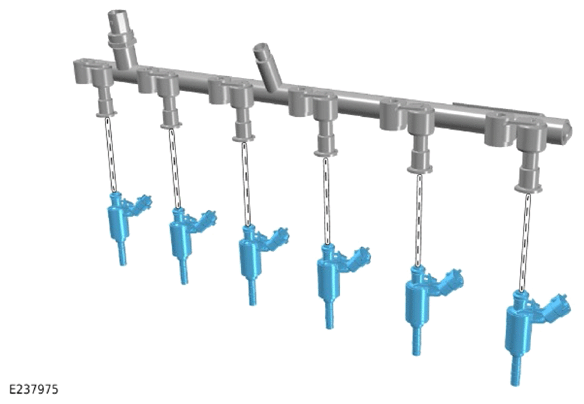

Install all the fuel injectors into the fuel rail.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure the fuel injectors are correctly aligned.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure the fuel injectors are correctly aligned.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

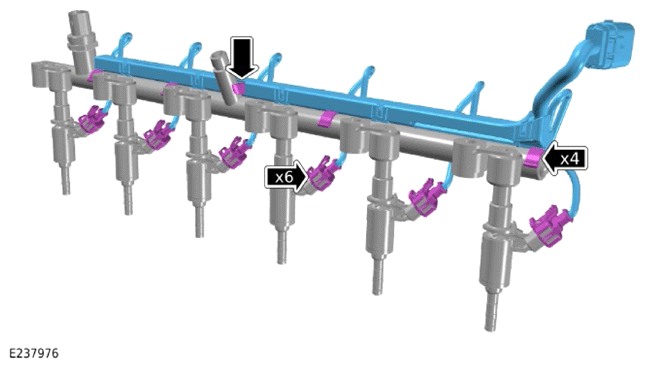

- Install the fuel injector wiring harness.
- Install the 4 clips.
- Connect the 6 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

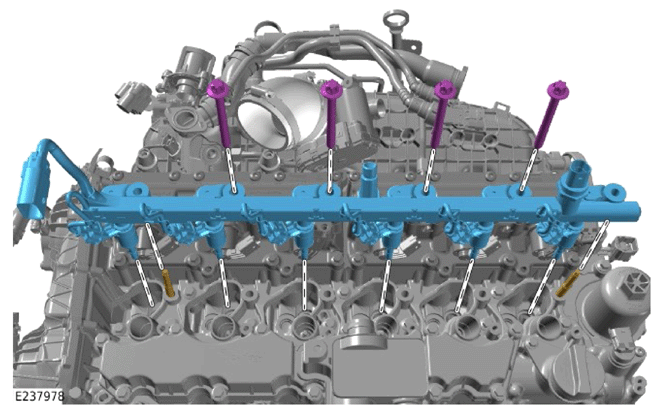

Install the appropriate special tools. If a new cylinder head has not been installed then the special tool JLR- 310-255 with the threaded section must be used. If a new cylinder head has been installed then the special tool JLR-310-256 without the threaded section must be used.

Special Tool(s): JLR-310-255 , JLR-310-256
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install, but do not fully tighten the 4 fuel injector bolts.
  Renew Part: Fuel rail bolt(s) Quantity: 4 .
- Tighten the bolts 1 turn at a time.
  Torque : 20 Nm
Remove the special tools.
Special Tool(s): JLR-310-255 , JLR-310-256
Install and tighten the remaining 2 fuel rail bolts.
Renew Part: Fuel rail bolt(s) Quantity: 2 .

Torque : 20 Nm

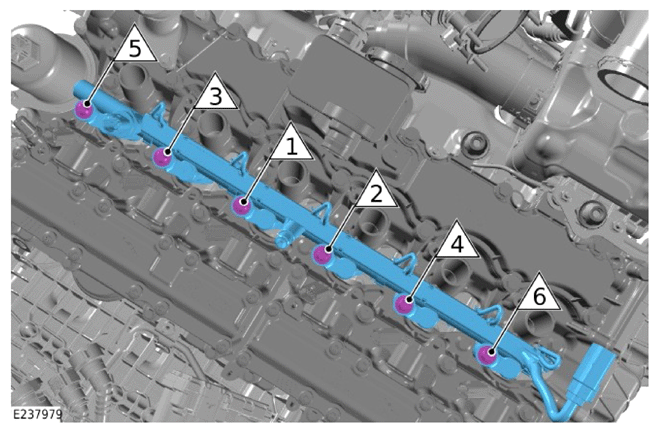

Fig 1: Fuel Rail Bolt Tighening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 6 bolts in the sequence illustrated.

Torque : 30 Nm
Install the NVH material.
CAUTION: Fuel lines may only be reused one time. After final tightening, clean the fuel line and apply a paint mark to identify reuse. If the fuel line is already paint marked, a new fuel line must be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the HP fuel line.
- Finger tighten the 2 unions.
- Tighten the 2 unions.
  Torque : 20 Nm
- Install and tighten the 2 M6 Hex stud bolts.
  Torque : 11.5 Nm
- Fully loosen the 2 fuel line unions.
- Finger tighten the 2 unions.
- Tighten the 2 fuel line unions.
  Torque : 20 Nm
- Wait for 30 seconds and recheck the final torque.
- Install and tighten the M6 Torx bolt.
  Torque : 11.5 Nm
- Position the wiring harness to the fuel injectors
- Connect the 10 electrical connectors.
- Install and tighten the 2 bolts.
  Torque : 7 Nm
Install the electric throttle.
Refer to: THROTTLE BODY
Install the ignition coil-on-plugs.
Refer to: IGNITION COIL-ON-PLUG
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I6 3.0L PETROL
Connect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Bleed the low pressure fuel system.
Refer to: LOW-PRESSURE FUEL SYSTEM BLEEDING
