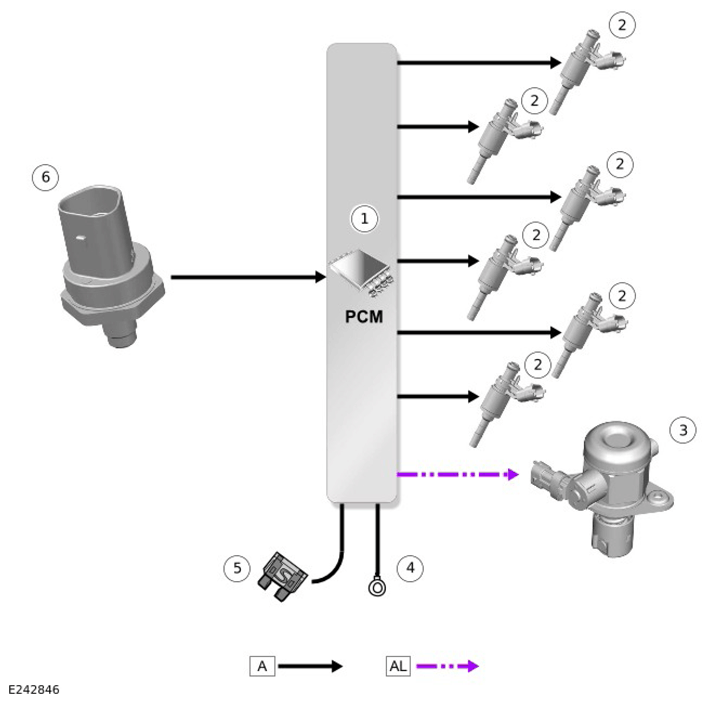

Control Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AL = PWM
.
| ITEM |
DESCRIPTION |
| 1 |
PCM |
| 2 |
Fuel injector |
| 3 |
Fuel metering valve - HP
fuel pump |
| 4 |
Ground |
| 5 |
Power supply |
| 6 |
FRPT
sensor |
