Turbocharger (G2300869): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the charge air cooler inlet pipe.
Refer to: CHARGE AIR COOLER INLET PIPE
Remove the electric supercharger.
Refer to: ELECTRIC SUPERCHARGER
Remove the catalytic converter.
Refer to: CATALYTIC CONVERTER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the turbocharger mounting bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the turbocharger actuator electrical connector.
WARNING: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Disconnect the 2 coolant pipes from the turbocharger.
- Remove and discard the 2 O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 5 bolts from the turbocharger upper heatshield.
- Release the turbocharger upper heatshield from the 2 clips.
- Remove the turbocharger upper heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts from the turbocharger rear heatshield.
- Release the turbocharger rear heatshield from the clip.
- Remove the turbocharger rear heatshield.
- Release the turbocharger front heatshield from the 2 clips.
- Remove the turbocharger front heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt from the turbocharger inner heatshield.
- Remove the turbocharger inner heatshield.
WARNING: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt from the oil supply pipe.
- Remove and discard the 2 sealing washers.
WARNING: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the oil return pipe.
- Remove and discard the 2 O-ring seals.
NOTE: The spacers and washers will remain captive on the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Use the special tool to remove the 2 bolts, spacers and washers.
  Special Tool(s): JLR-303-1683
- Discard the 2 bolts, spacers and washers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

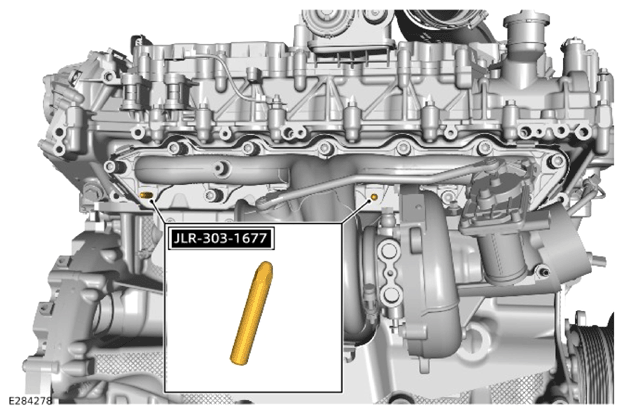

Install the special tools.

Special Tool(s): JLR-303-1677
NOTE: The spacers and washers will remain captive on the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

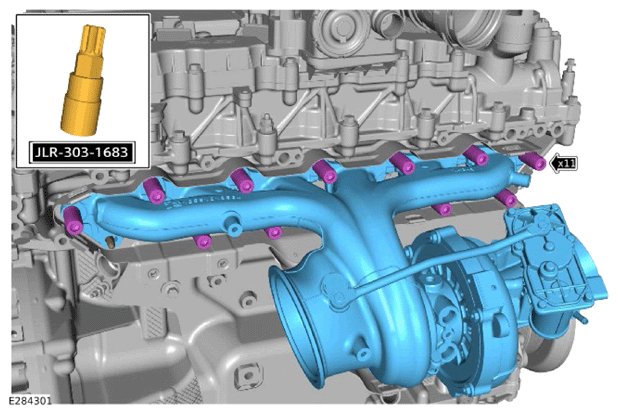

- Use the special tool to remove the 11 bolts, spacers and washers.
  Special Tool(s): JLR-303-1683
- Discard the 11 bolts, spacers and washers.
- Remove the turbocharger.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tools.
  Special Tool(s): JLR-303-1677
- Remove and discard the exhaust manifold gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use an M8 x 1.25 bottoming tap to clean the threads.
