Oil Supply Pipe (G2327535): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Remove the charge air cooler inlet pipe.
Refer to: CHARGE AIR COOLER INLET PIPE
WARNING: Be prepared to collect escaping oil.

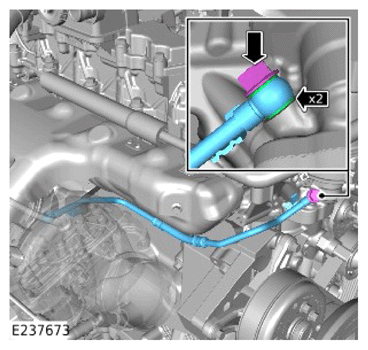

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Disconnect the oil supply pipe.
- Remove and discard the 2 sealing washers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Remove the oil supply pipe.
- Remove and discard the 2 sealing washers.
