Turbocharger Cooling
WARNING: This page is about a different variant/trim than selected.

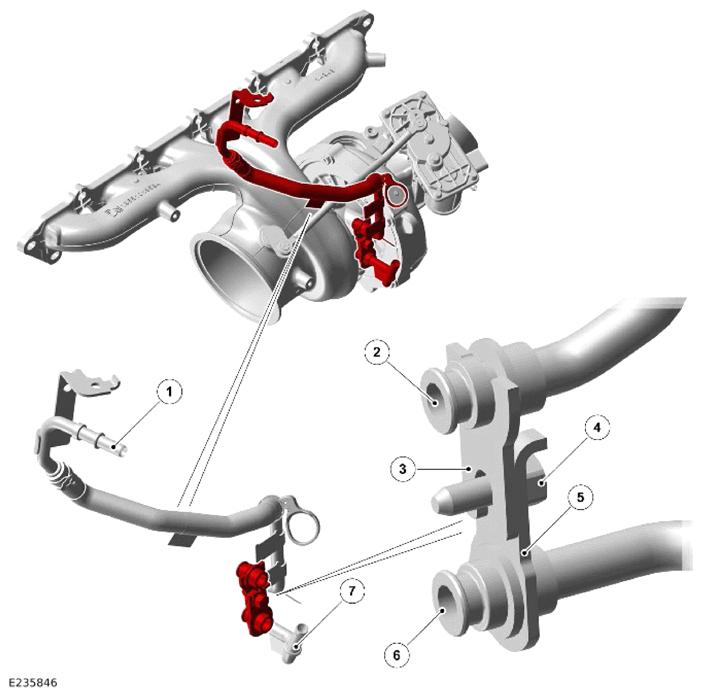

| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine coolant inlet |
| 2 | Engine coolant inlet - To turbocharger |
| 3 | Flange |
| 4 | Bolt |
| 5 | Flange |
| 6 | Engine coolant outlet - Turbocharger |
| 7 | Engine coolant outlet |
The turbocharger also requires a supply from the engine cooling system to assist with the cooling due to the high loads on the turbocharger. The engine coolant flows into the turbocharger through engine coolant supply pipe. The engine coolant returns to the engine cooling system through engine coolant return pipe.
