Engine Vent Oil Separator (G2344527): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the air filter outlet pipe.
Refer to: AIR FILTER OUTLET PIPE
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER SERVICE POSITION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the clip and reposition the bracket and wiring harness away from the engine vent oil separator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

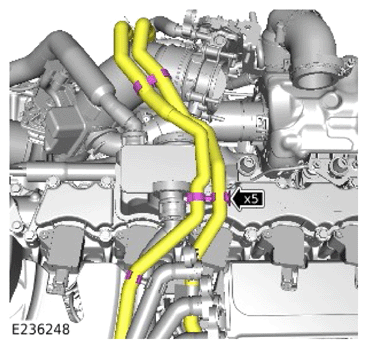

- Release the 2 hoses from the 5 clips.
- Reposition the 2 hoses away from the engine vent oil separator.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

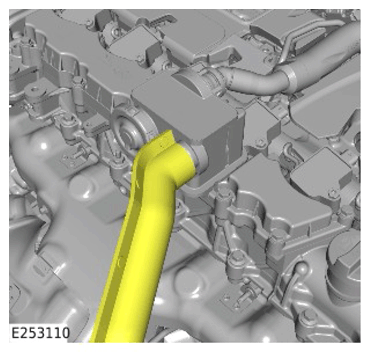

Reposition the heatshield away from the engine vent oil separator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

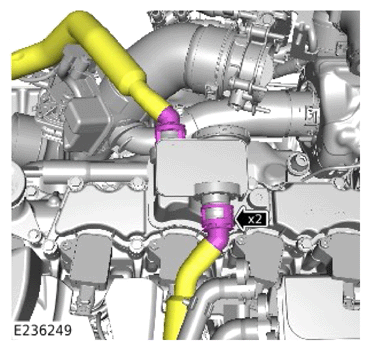

Release the 2 pipes and reposition away from the engine vent oil separator.
NOTE: The bolts are captive.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Loosen the 11 bolts.
- Remove the engine vent oil separator.
- Remove and discard the gasket.
