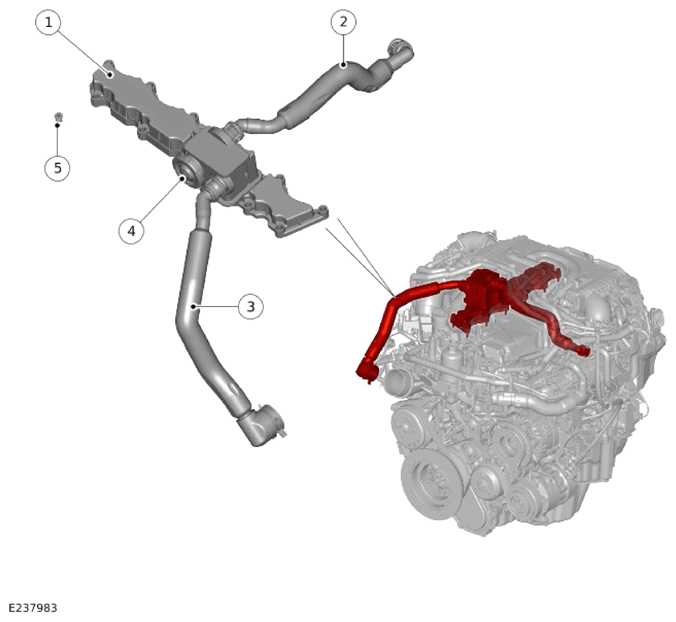

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Camshaft cover breather with engine vent oil separator |
| 2 |
Breather hose to the intake manifold |
| 3 |
Breather hose to the turbocharger intake vent |
| 4 |
Positive crankcase ventilation valve |
| 5 |
Positive crankcase ventilation oil drain valve |
