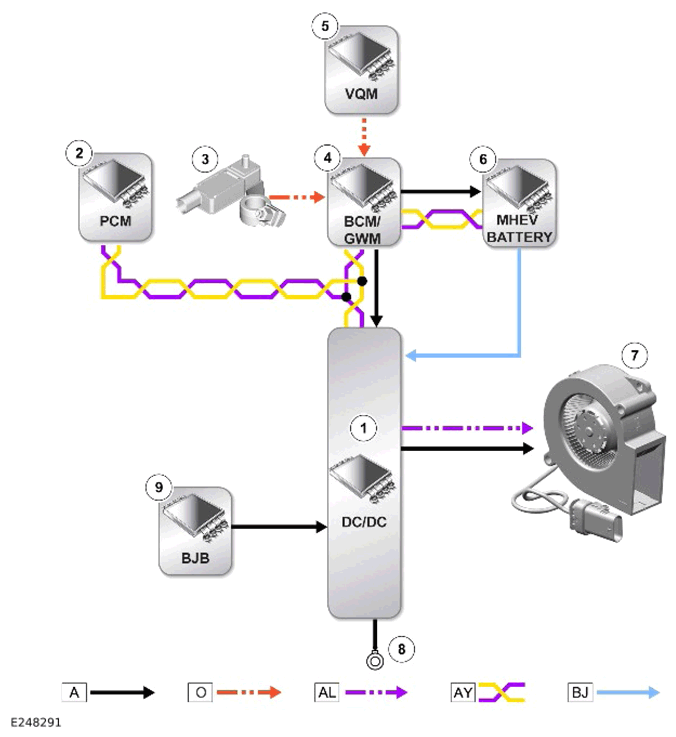

Control Diagram - 1 Of 1
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AL = PWM: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BJ = MHEV BATTERY CABLE.
| ITEM | DESCRIPTION |
|---|---|
| 1 | DC/DC |
| 2 | PCM |
| 3 | Battery Monitoring System (BMS) control module |
| 4 | BCM /GWM |
| 5 | Voltage Quality Module (VQM) |
| 6 | MHEV battery |
| 7 | DC/DC electric cooling fan |
| 8 | Ground |
| 9 | BJB |
