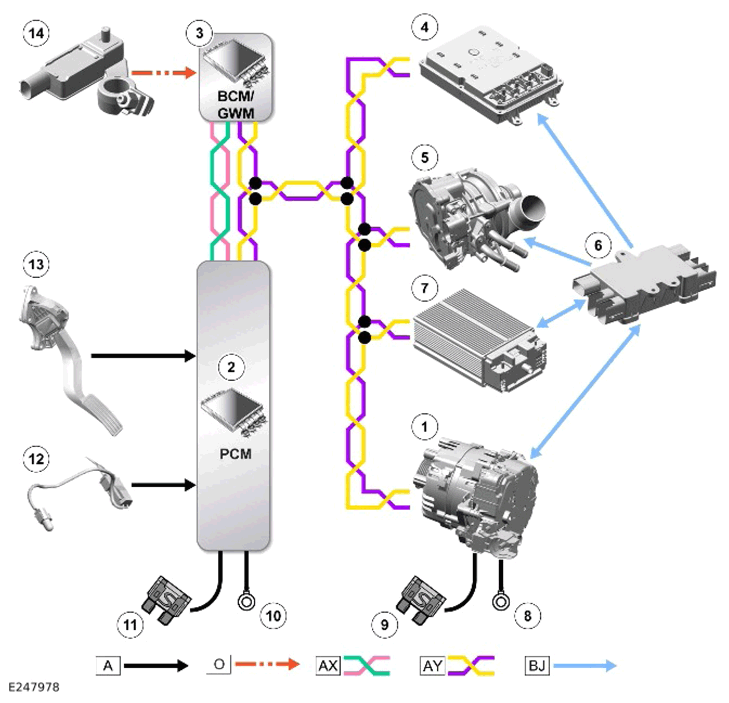

Control Diagram - 2 Of 2 - Charging System
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AX = FLEXRAY: AY = HS CAN POWER MODE ZERO SYSTEM BUS: BJ = MHEV BATTERY CABLES.
| ITEM | DESCRIPTION |
|---|---|
| 1 | BISG |
| 2 | PCM |
| 3 | BCM /GWM |
| 4 | DC/DC |
| 5 | Supercharger Control Module (TSCM) |
| 6 | MHEV battery junction box |
| 7 | MHEV battery |
| 8 | Ground |
| 9 | Power supply |
| 10 | Ground |
| 11 | Power supply |
| 12 | AAT sensor - In the left door mirror |
| 13 | APP sensor |
| 14 | Battery Monitoring System (BMS) control module |
