Component Location - 1 Of 1
WARNING: This page is about a different variant/trim than selected.
NOTE:

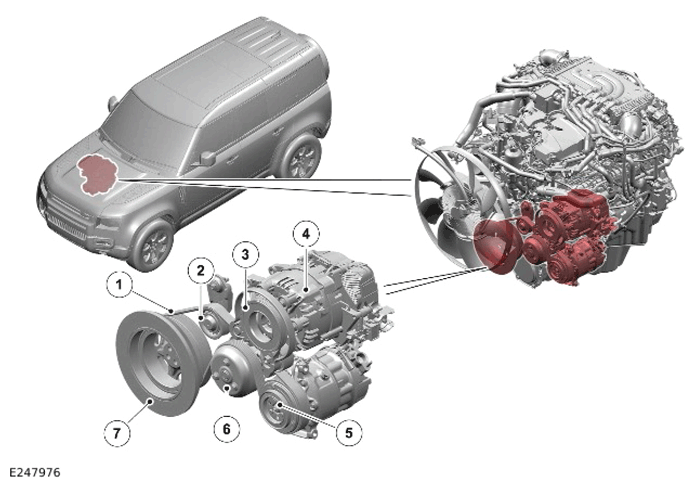

Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Belt Integrated Starter Generator (BISG) drive belt |
| 2 |
Drive belt idler |
| 3 |
BISG
tensioner |
| 4 |
BISG |
| 5 |
Air Conditioning (A/C) compressor pulley |
| 6 |
Coolant pump pulley |
| 7 |
Crankshaft pulley |
