Fuel Tank - 110 (G2417094): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

Make sure the fuel tank is suitably supported at all times.
Be prepared to collect escaping fuel.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Before working on the fuel system make sure to study the fuel system health and safety.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Drain the fuel tank.
Refer to: FUEL TANK DRAINING
Remove the rear driveshaft.
Refer to: REAR DRIVESHAFT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

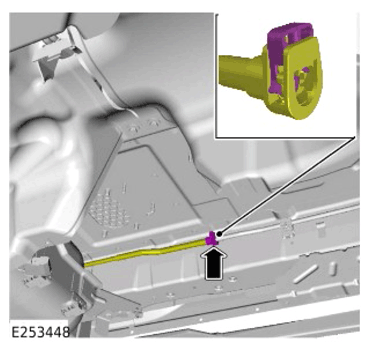

Disconnect the fuel tank line.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

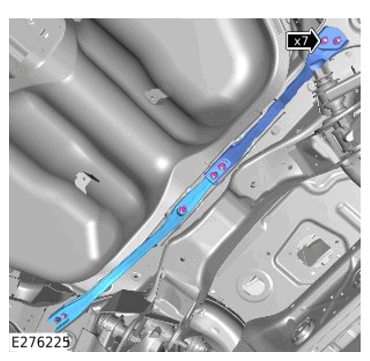

- Remove the 7 nuts.
- Remove the 2 brackets.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the fuel tank filler pipe clip.
- Release the fuel tank filler pipe from the fuel tank.
- Remove the 7 bolts.
- Remove the fuel tank.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

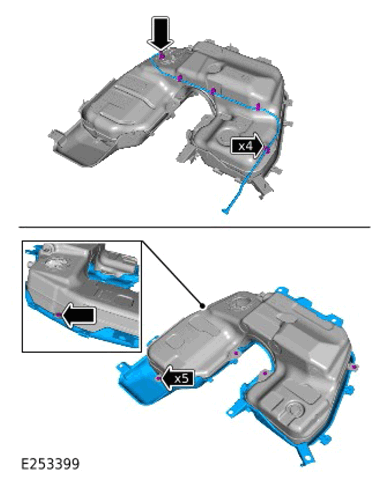

- Release the 4 clips.
- Disconnect and remove the fuel line.
- Remove the 5 bolts.
- Remove the fuel tank cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

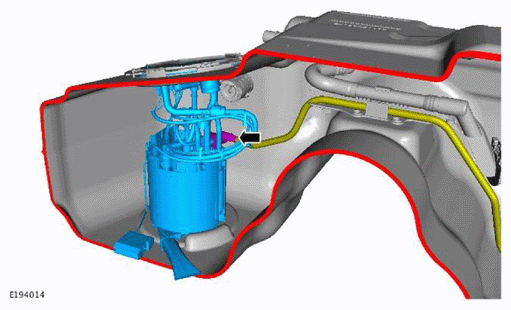

- Disconnect the fuel line from the fuel pump module.
- Remove the fuel pump module from the fuel tank.
