Fuel Filler Neck (G2422808): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Care must be taken not to damage the body work.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the fuel filler neck to the vehicle.
- Install and tighten the 2 nuts.
  Torque : 10 Nm
- Install and tighten the bolt.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

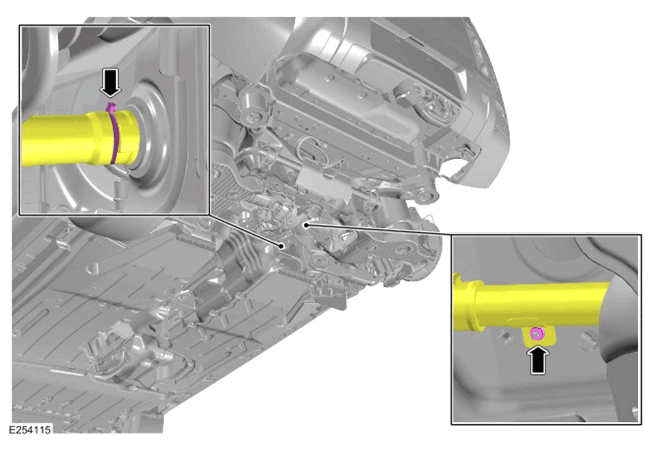

- Connect the fuel filler neck to the fuel tank.
- Install and tighten the nut.
  Torque : 10 Nm
- Install and tighten the hose clamp.
  Torque : 3.2 Nm
CAUTION:
- Make sure that the components are correctly aligned.
- Only tighten the bolts finger tight at this stage.
- Use the transmission jack to raise the rear subframe front section carefully to the original position.
- Install, but do not fully tighten the rear subframe 4 new bolts.
  Renew Part: Rear subframe to body bolts Quantity: 4 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the front subframe support bracket bolts.

Torque : 60 Nm
CAUTION: Only tighten the bolts finger tight at this stage.

NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and hand tighten the new bolt and nut.

Renew Part: Shock absorber nut and bolt Quantity: 2 .
Remove the transmission jack.
Install the rear driveshaft.
Refer to: REAR DRIVESHAFT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

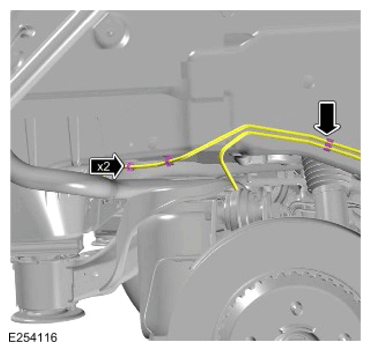

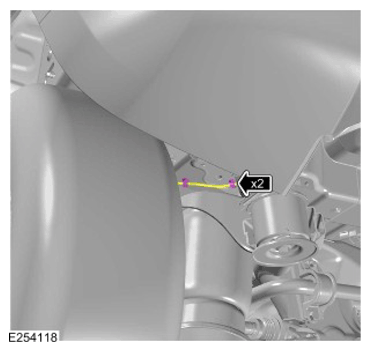

Secure the air suspension hose to the 2 clips at the left side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

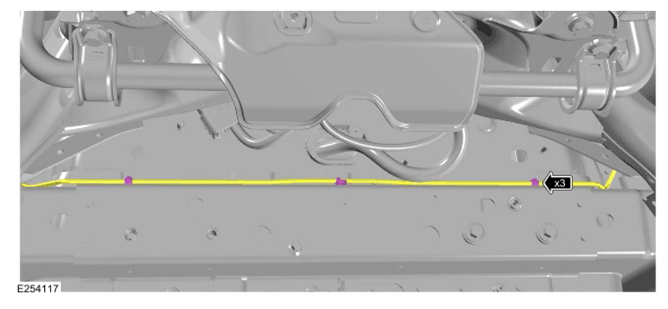

Secure the air suspension hose to the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Secure the air suspension hoses to the 3 clips at the right side.
CAUTION: Make sure that all the clips are correctly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

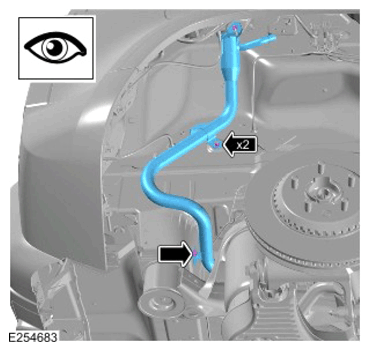

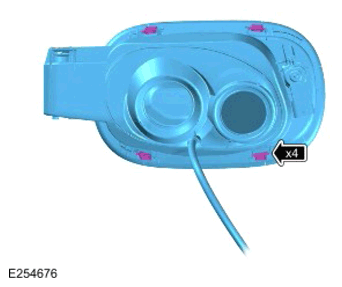

Install the fuel filler assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

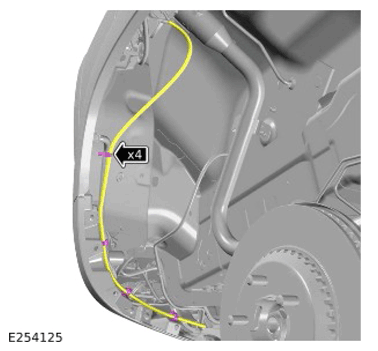

Secure the hose to the 4 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

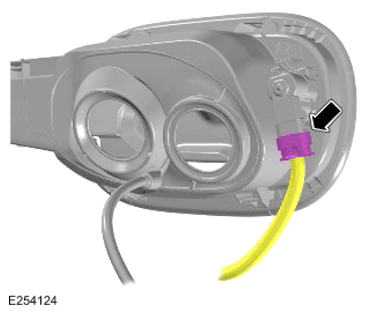

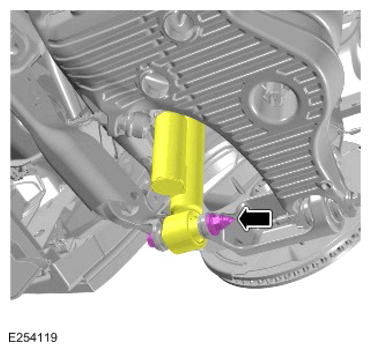

Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

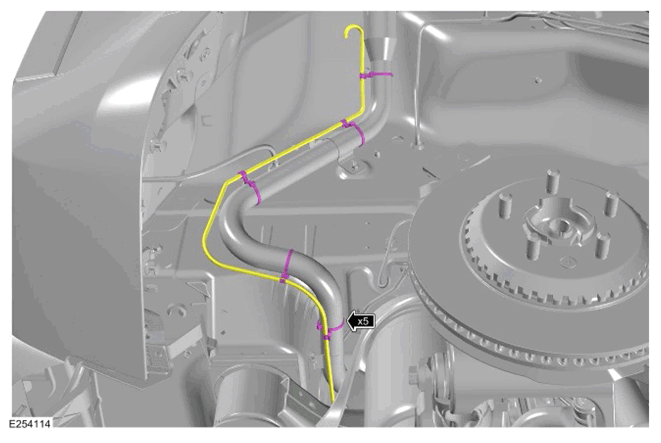

Secure the breather hose at the 5 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

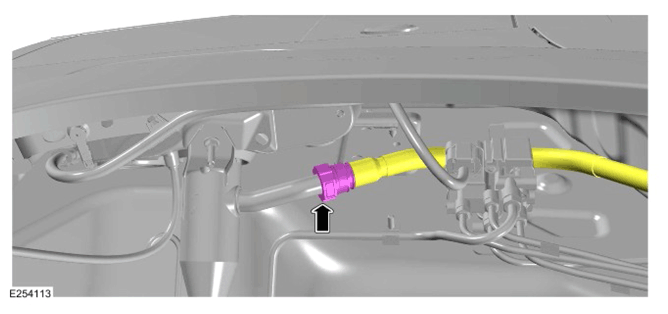

Connect the evaporative emission canister hose.
Install the right rear wheel arch liner.
Refer to: REAR WHEEL ARCH LINER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

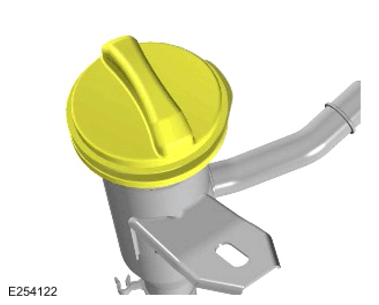

Install the fuel filler cap.
CAUTION: Nut and bolt must be tightened with vehicle at normal ride height.

NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the new bolt and nut.

Renew Part: Shock absorber nut and bolt Quantity: 2 .

Torque

Stage 1: 100 Nm

Stage 2: 240°
CAUTION: Bolts must be tightened with vehicle at normal ride height.

Fully tighten the 4 new subframe bolts.

Torque

Front bolts

Stage 1: 100 Nm

Stage 2: 240°

Rear bolts

Stage 1: 100 Nm

Stage 2: 300°
WARNING: After doing repairs, the fuel system must be checked visually for leaks. Failure to follow these instructions may result in personal injury.

Fill the fuel tank with the amount recovered during the fuel tank drain procedure.

Refer to: LOW-PRESSURE FUEL SYSTEM BLEEDING
Use the Jaguar Land Rover (JLR) approved diagnostic equipment to pressurize the air suspension.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE
Use the Jaguar Land Rover (JLR) approved diagnostic equipment to check and if necessary adjust the wheel alignment.
Refer to: WHEEL ALIGNMENT
