Fuel Pump Driver Module
WARNING: This page is about a different variant/trim than selected.
NOTE:
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.

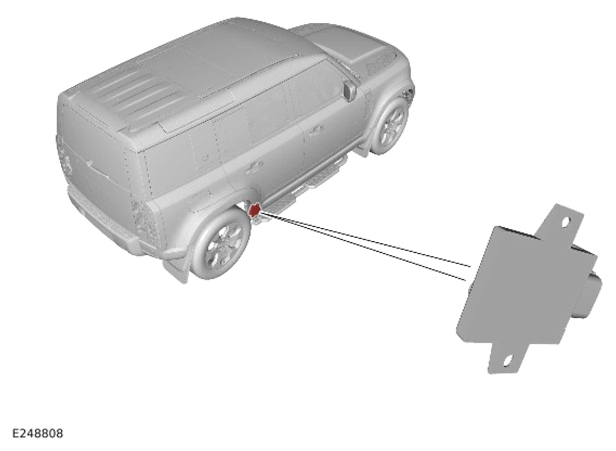

The FPDM is located behind the rear right wheel arch liner. The FPDM is attached to a bracket and secured by 2 nuts. The bracket is secured to the rear right member reinforcement panel.
The LP fuel pump operation is controlled by the FPDM which is controlled by the PCM . The FPDM receives a Pulse Width Modulation (PWM) signal from PCM . The FPDM outputs the required power to the LP fuel pump to provide the fuel flow and pressure output.
The FPDM has a single wiring harness connector. The wiring harness connector has the following connections:
- Power supply from the fuel pump relay in the Rear Junction Box (BCMB).
- PWM signal from the PCM .
- Power to the LP fuel pump in the fuel pump module (quantity 3).
- Ground for the LP fuel pump in the fuel pump module.
- Ground.
