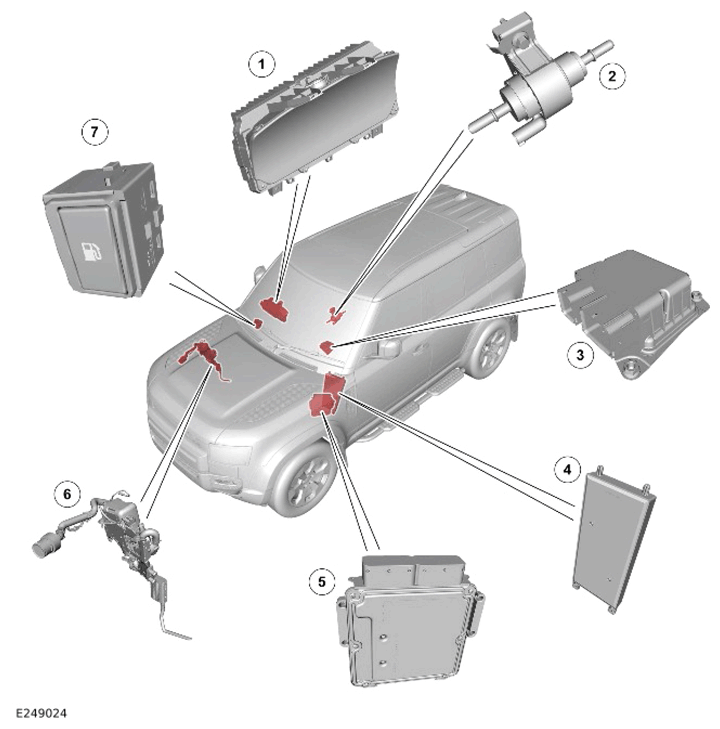

Component Location - 5 Of 5 - Fuel Fired Booster Heater (If Equipped)
WARNING: This page is about a different variant/trim than selected.
NOTE:
Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument Panel Cluster (IPC) |
| 2 | Fuel Fired Booster Heater (FFBH) fuel pump |
| 3 | Restraints Control Module (RCM) |
| 4 | Body Control Module (BCM)/Gateway Control Module (GWM) |
| 5 | Powertrain Control Module (PCM) |
| 6 | FFBH assembly |
| 7 | Release switch - Fuel flap |
