MHEV Pass Through Assembly To Front Junction Box Cables (G2422551): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not allow the cables to hang unsupported.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Power down the Mild Hybrid Electric Vehicle (MHEV) system.
Refer to: MHEV POWER DOWN/UP
Remove the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD
Remove the rear subframe assembly.
Refer to: REAR SUBFRAME
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

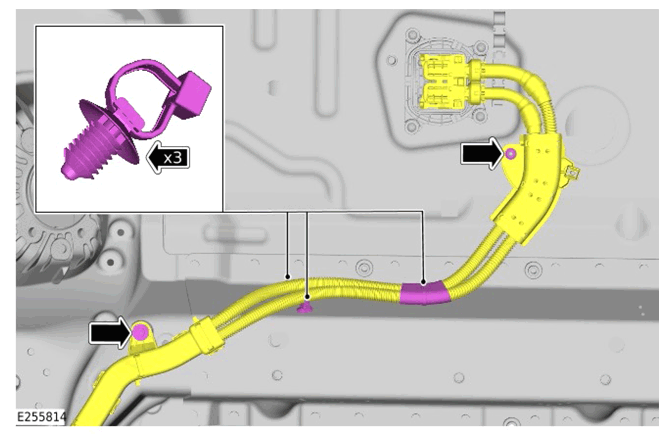

- Disconnect the MHEV cable front electrical connector.
- Release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the MHEV cable from the clip.
- Disconnect the MHEV cable rear electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Release the 2 MHEV cable front clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

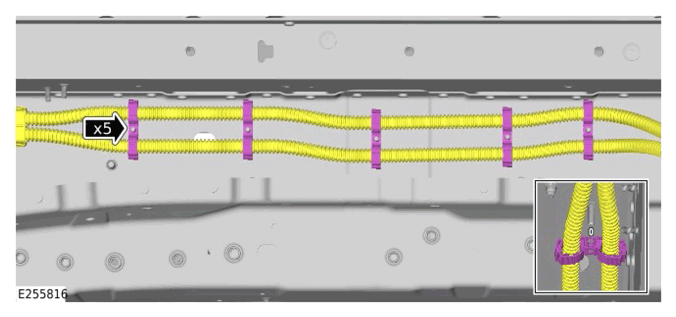

Release the 5 MHEV cable center clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

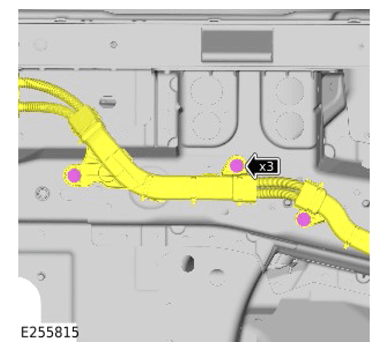

Remove the 3 MHEV cable center bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

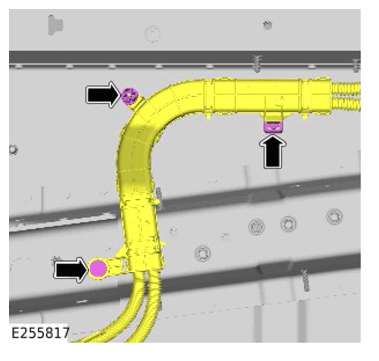

- Remove the MHEV cable rear bolt.
- Remove the MHEV cable rear nut.
- Release the 3 MHEV cable rear clips.
CAUTION: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

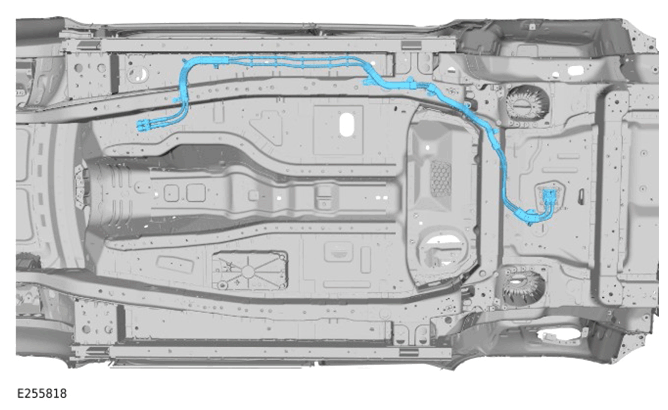

Remove the MHEV pass through assembly to front junction box cables.
