MHEV Pass Through Assembly - 110 (G2422550): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Power down the Mild Hybrid Electric Vehicle (MHEV) system.
Refer to: MHEV POWER DOWN/UP

The following step(s) applies to:

Vehicles with occasional rear seats
Remove the third row seats.
Refer to: THIRD ROW SEAT

The following step(s) applies to:

All vehicles
Remove the rear subframe.
Refer to: REAR SUBFRAME
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

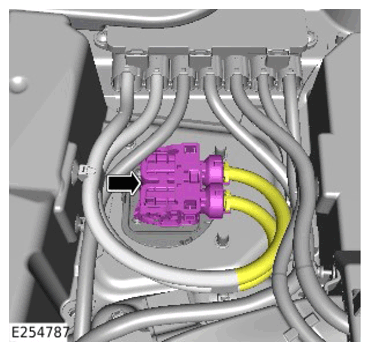

Disconnect the loadspace electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

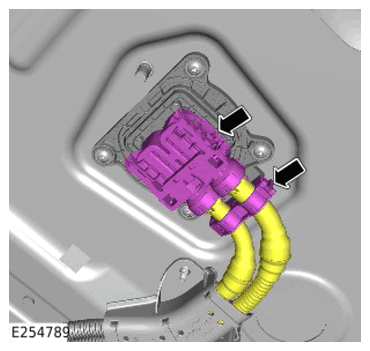

- Release the wiring harness from the clip.
- Disconnect the underside electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

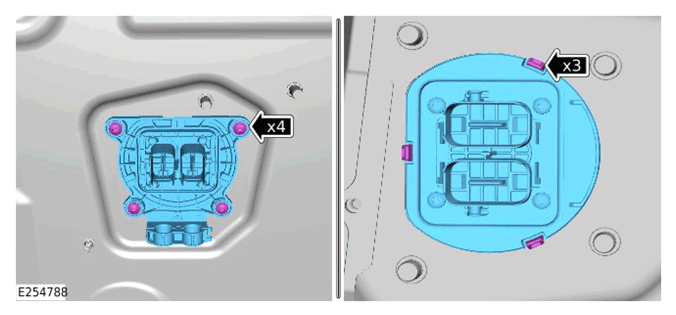

- Remove the 4 bolts.
- Release the 3 clips and remove the MHEV pass through assembly.
