MHEV Front Junction Box (G2422548): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Power down the Mild Hybrid Electric Vehicle (MHEV) system.
Refer to: MHEV POWER DOWN/UP
Remove the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

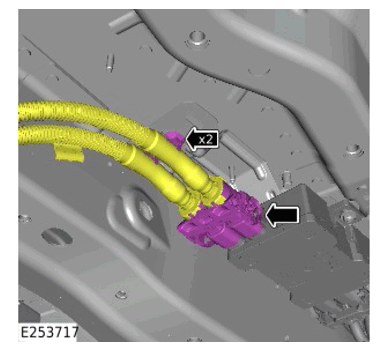

- Release the 2 clips.
- Disconnect the rear electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

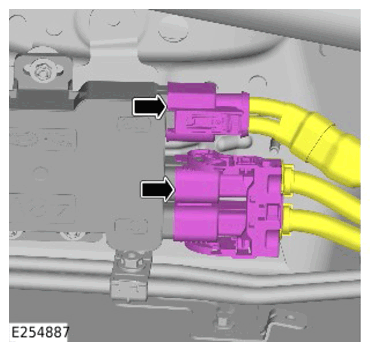

Disconnect the 2 front electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

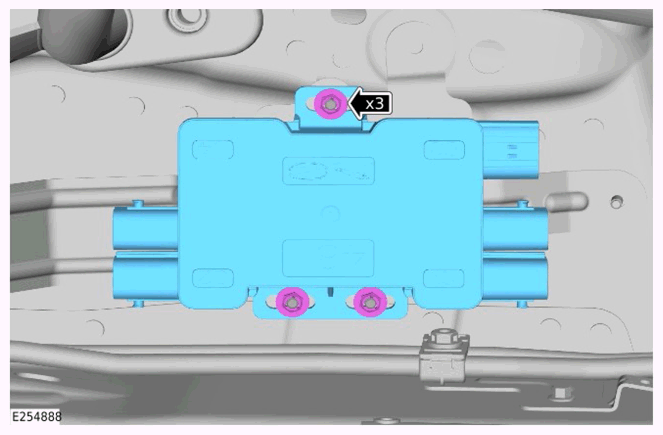

- Remove the 3 nuts.
- Remove the MHEV battery front junction box.
