MHEV Battery Rear Junction Box - 90 (G2886137): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Power down the Mild Hybrid Electric Vehicle (MHEV) system.
Refer to: MHEV POWER DOWN/UP
Remove the MHEV battery air duct.
Refer to: MHEV BATTERY HOUSING AIR DUCT - 90
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

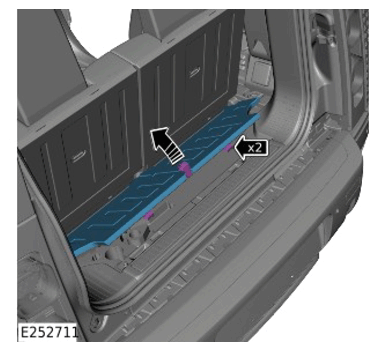

Remove the loadspace floor trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 clips and open the cover on the Direct Current to Direct Current (DC/DC) housing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 3 clips and remove the DC/DC terminal cover.
NOTE: Note the position of the cables to aid installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Disconnect the 2 cables from the DC/DC .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 wiring harness clips from the left side of the DC/DC cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 wiring harness clips from the MHEV battery cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 4 wiring harness clips from the MHEV battery tray.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

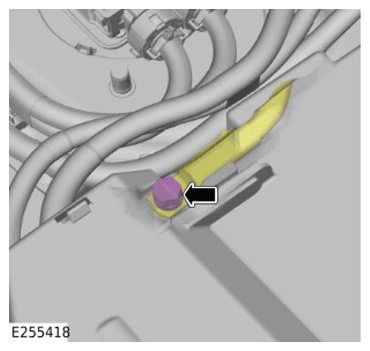

- Remove the nut.
- Disconnect the rear MHEV junction box ground cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the ground cable clip.
- Disconnect the electrical connector.
- Remove the 2 bolts.
- Remove the rear MHEV junction box.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the insulated padlock.
- Remove the cover.
- Remove the MHEV battery negative cable.
- Install the cover.
  Special Tool(s): JLR-415-132
