MHEV Battery (G2422562): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

If the battery is being replaced a printed copy of the State Of Charge (SOC) report must be placed in the old battery return packaging.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Power down the Mild Hybrid Electric Vehicle (MHEV) system.
Refer to: MHEV POWER DOWN/UP
Remove the MHEV battery air duct.
Refer to: MHEV BATTERY HOUSING AIR DUCT - 110

Refer to: MHEV BATTERY HOUSING AIR DUCT - 90
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

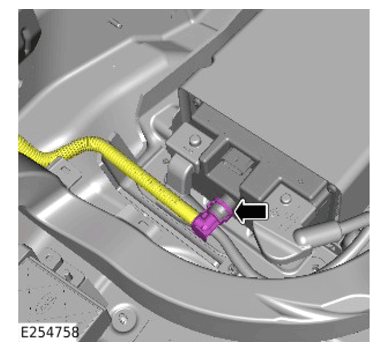

Disconnect the MHEV battery breather hose from the MHEV battery.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

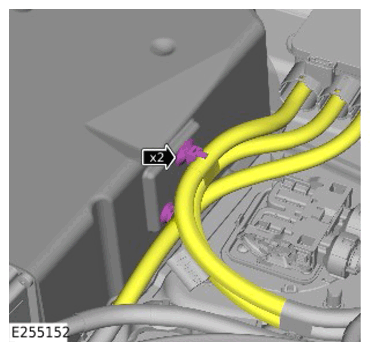

Release the 2 wiring harness clips from the MHEV battery cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

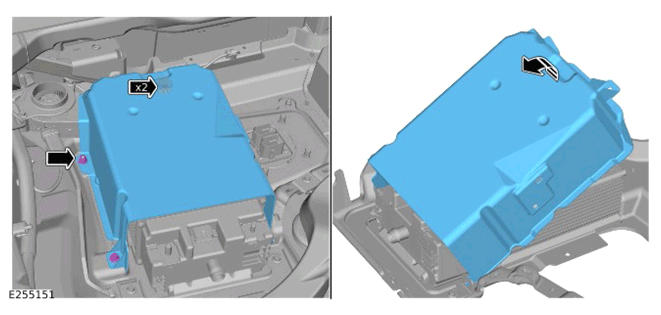

- Remove the 2 bolts.
- Remove the nut.
- Remove the MHEV battery cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

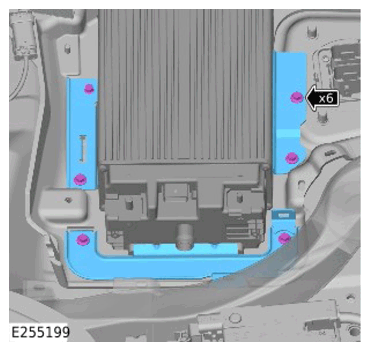

- Remove the 6 bolts.
- Remove the 3 brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

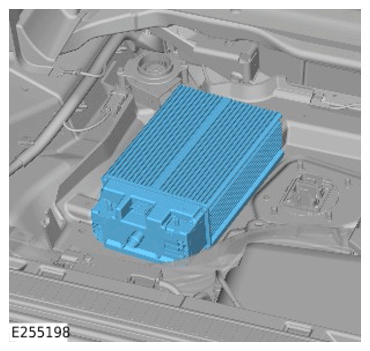

Remove the MHEV battery.
