Direct Current To Direct Current Converter - 110 (G2422535): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Power down the Mild Hybrid Electric Vehicle (MHEV) system.
Refer to: MHEV POWER DOWN/UP
Remove the Direct Current to Direct Current (DC/DC) air duct.
Refer to: DIRECT CURRENT TO DIRECT CURRENT CONVERTER AIR DUCT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

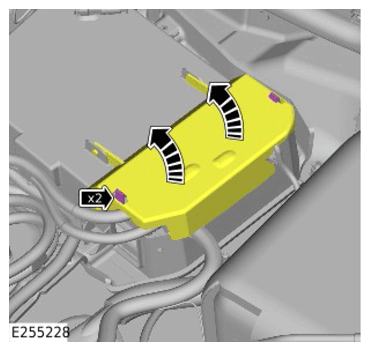

Release the 2 clips and open the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

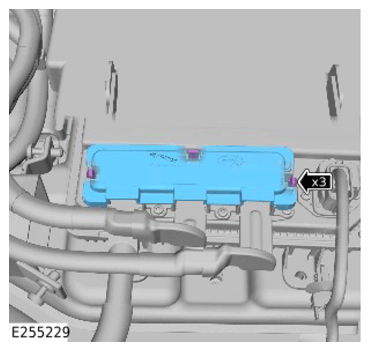

Release the 3 clips and remove the terminal cover.
NOTE: Note the position of the cables to aid installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

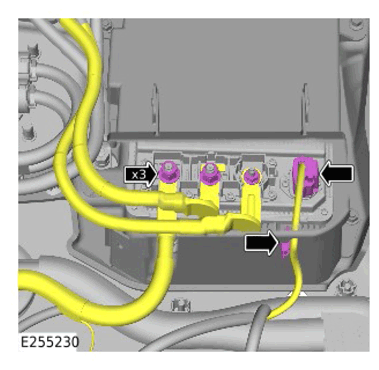

- Disconnect the electrical connector.
- Release the wiring harness clip.
- Remove the 3 nuts.
- Disconnect the 3 cables.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

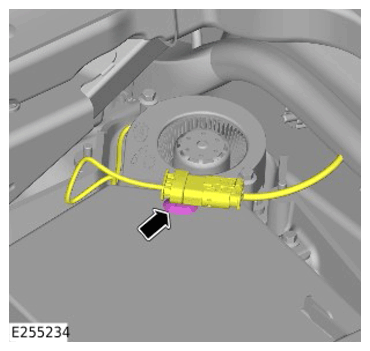

- Release the wiring harness clip.
- Reposition the wiring harness away from the DC/DC .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

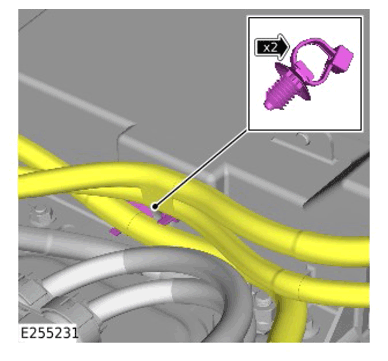

Release the 2 wiring harness clips from the left side of the DC/DC cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

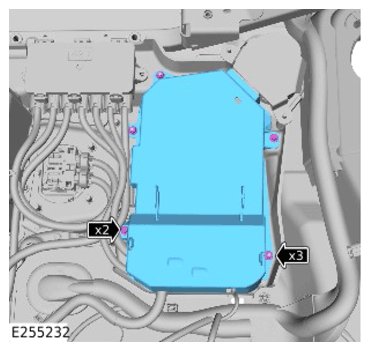

- Remove the 2 bolts.
- Remove the 3 nuts.
- Remove the DC/DC cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

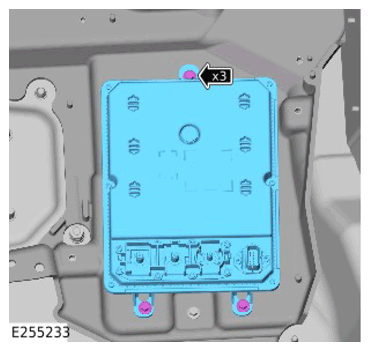

- Remove the 3 bolts.
- Remove the DC/DC .
