MHEV Power Down/Up (G2422524): Connect

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

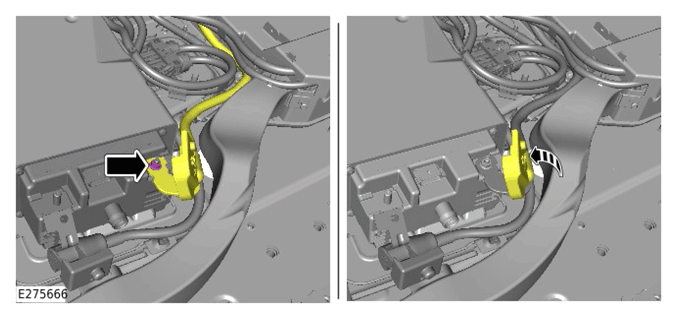

- Connect the MHEV battery positive cable.
- Install and tighten the nut.
  Torque : 10 Nm
- Remove and discard the cable tie.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the insulated padlock.
- Remove the cover.
- Remove the MHEV battery negative cable.
- Install the cover.

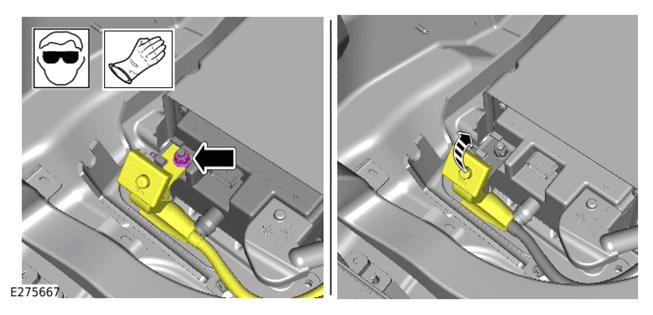

WARNING: Wear safety goggles and protective gloves.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the MHEV battery negative cable.
- Install and tighten the nut.
  Torque : 12 Nm
- Reposition the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

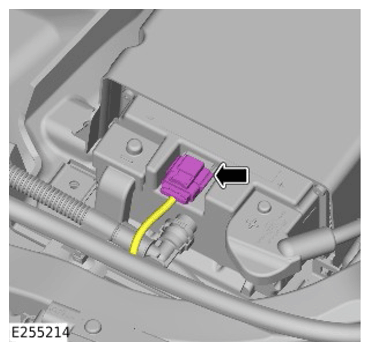

Connect the electrical connector to the MHEV battery.
Install the stowage compartment.
Install the loadspace floor cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

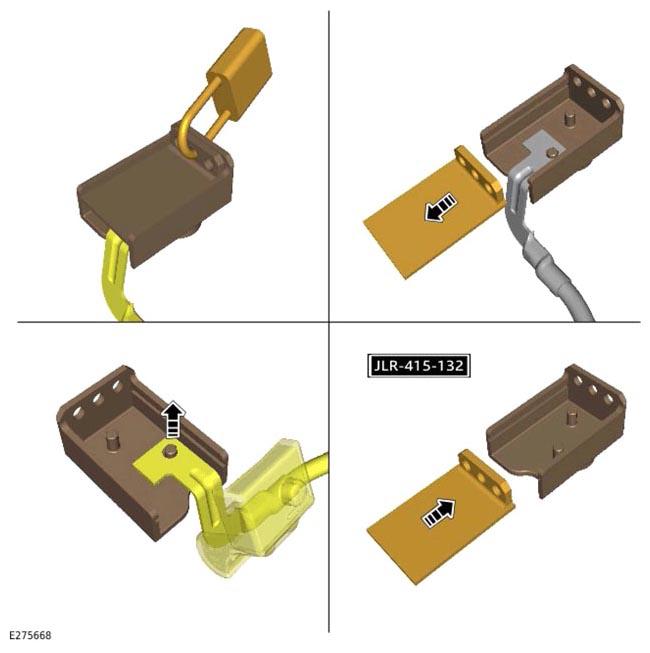

- Remove the insulated padlock.
- Open the lid of the special tool.
- Remove the startup battery ground cable from the special tool.
- Close the lid of the special tool.
Connect the BMS electrical connector.
Connect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
