Startup Battery
WARNING: This page is about a different variant/trim than selected.
NOTE:

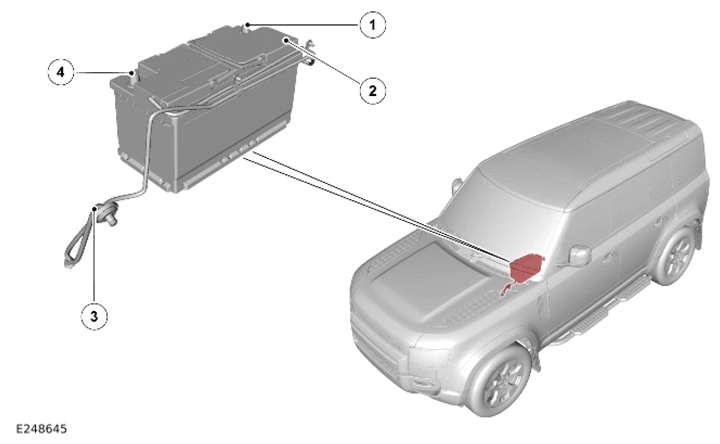

Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Startup battery negative terminal |
| 2 | Startup battery |
| 3 | Startup battery breather pipe |
| 4 | Startup battery positive terminal |
The startup battery is located in a tray under the driver seat. The startup battery is secured in position with a clamp plate and a bolt assembly.
The startup battery is an H8 90 Ah, 850 CCA Absorbed Glass Mat (AGM) battery on all vehicles.
The startup battery negative terminal has the BMS control module located on it. The startup battery positive terminal connector contains the megafuse and connects to the BJB.
