Startup Battery Cables
WARNING: This page is about a different variant/trim than selected.
NOTE:

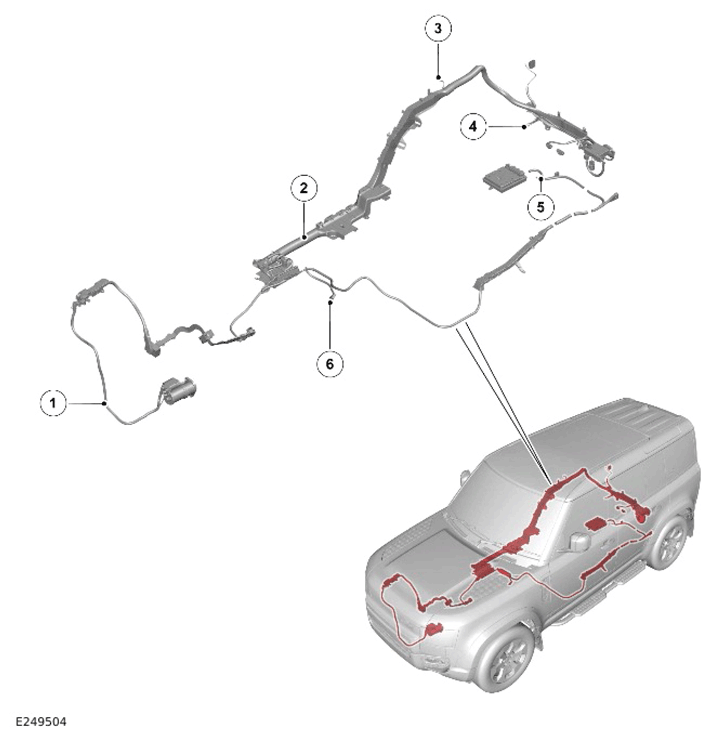

Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Startup battery cable (positive) from the jump start terminal (positive) to the starter motor |
| 2 | Main wiring harness |
| 3 | Ground cable from the BCMB to the vehicle engine ground connection |
| 4 | Ground cable from the AJB to a vehicle body ground connection |
| 5 | Ground cable from the DC/DC to a vehicle body ground connection |
| 6 | Ground cable from the BMS plate to the vehicle engine ground connection |
The startup battery cables (positive) are for the high current connections between the following:
- Startup battery
- DC/DC
- Starter motor
- BJB
- EJB
- AJB
- PJB
- BCMB .
The startup battery cables (positive) from the BJB to the other junction boxes and modules are all in the main wiring harness.
