MHEV Cables
WARNING: This page is about a different variant/trim than selected.

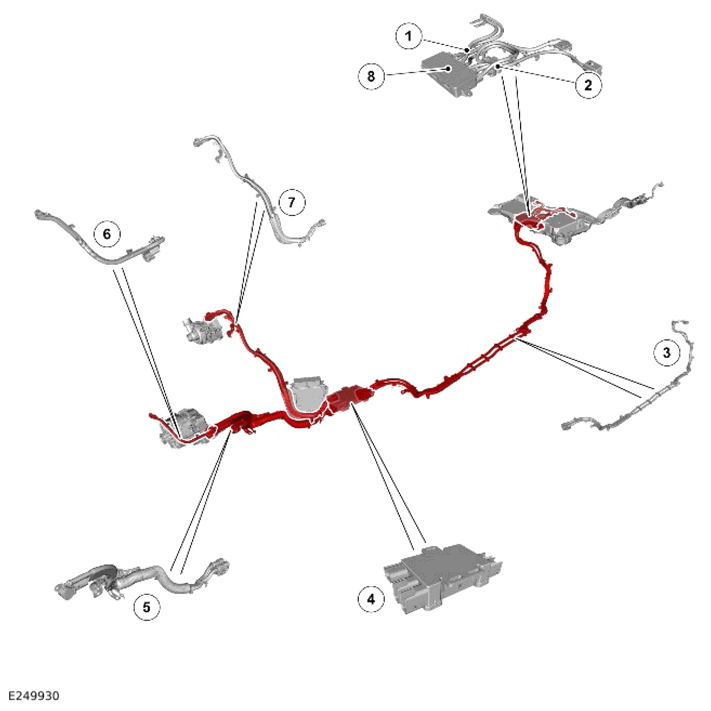

| ITEM | DESCRIPTION |
|---|---|
| 1 | MHEV cables - Rear MHEV junction box to the DC/DC |
| 2 | MHEV cables - Rear MHEV junction box to the MHEV battery |
| 3 | MHEV cables - Rear MHEV junction box to the front MHEV junction box |
| 4 | MHEV junction box - Front |
| 5 | MHEV cables - Front MHEV junction box to the BISG |
| 6 | MHEV cables - BISG |
| 7 | MHEV cables - Front MHEV junction box to the Electric supercharger |
| 8 | MHEV junction box - Rear |
The MHEV cables have a pale blue outer covering. The MHEV cables connect the following components:
- MHEV battery
- MHEV junction box - Front
- MHEV junction box - Rear
- DC/DC
- BISG
- Electric supercharger.
The MHEV cables distribute the MHEV battery voltage of approximately 48V to the MHEV battery components.
