MHEV Cables Electromagnetic Compatibility Insulation
WARNING: This page is about a different variant/trim than selected.

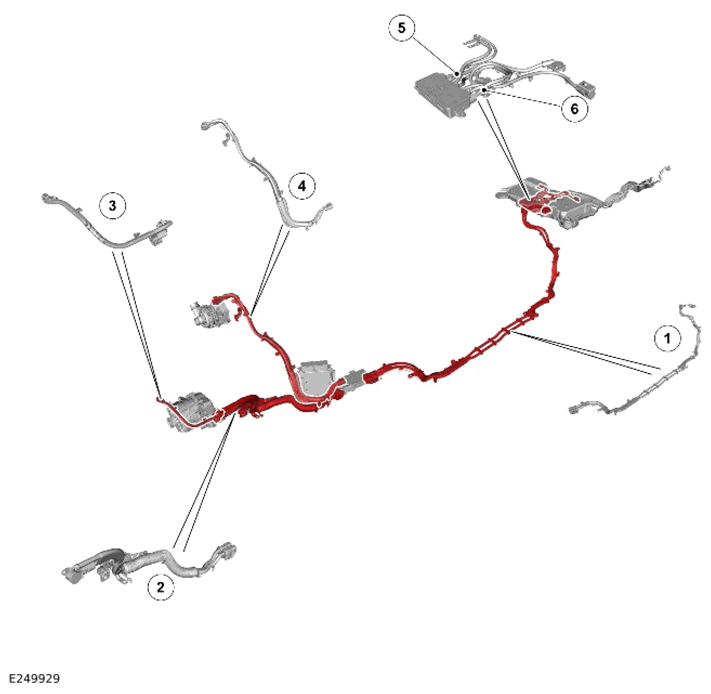

| ITEM | DESCRIPTION |
|---|---|
| 1 | MHEV cable - Front MHEV junction box to the rear MHEV junction box |
| 2 | MHEV cable - Front MHEV junction box to the BISG |
| 3 | MHEV cable - BISG |
| 4 | MHEV cable - Front MHEV junction box to the electric supercharger |
| 5 | MHEV cable - Rear MHEV junction box to the MHEV battery and the DC/DC |
| 6 | MHEV cable - Rear MHEV junction box to the MHEV battery |
There are 5 sections of the MHEV cables that have Electromagnetic Compatibility (EMC) screening on them as following:
- The front MHEV junction box to the rear MHEV junction box
- The front MHEV junction box to the BISG
- The MHEV cables - BISG
- The front MHEV junction box to the electric supercharger
- The rear MHEV junction box to the MHEV battery and the DC/DC .
Each section of EMC screening on the MHEV cables has an electrical wiring connector to provide a ground connection. The EMC screening ground connections are installed to the body with bolts.
