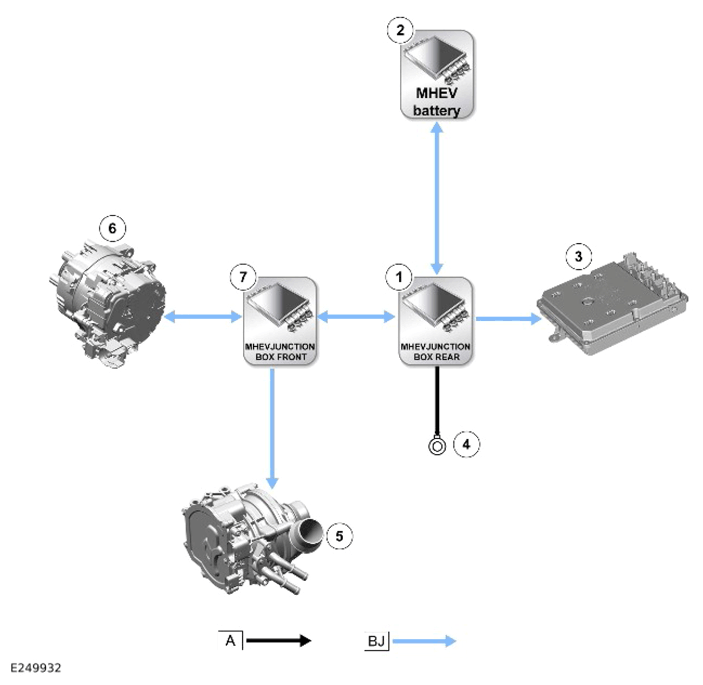

Control Diagram - 2 Of 2 - MHEV Cables
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: BJ = MHEV CABLES.
| ITEM |
DESCRIPTION |
| 1 |
MHEV
junction box - Rear |
| 2 |
MHEV
battery |
| 3 |
DC/DC |
| 4 |
Ground |
| 5 |
Electric supercharger |
| 6 |
BISG |
| 7 |
MHEV
junction box - Front |
