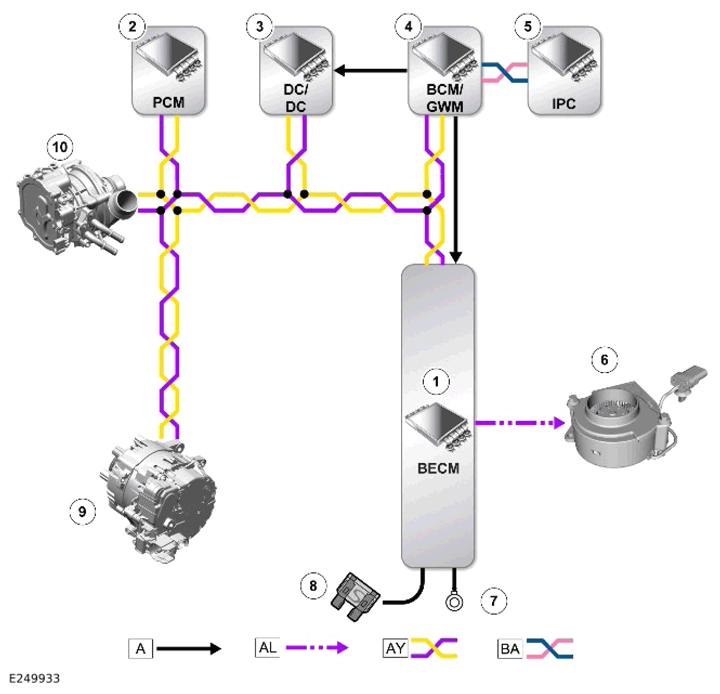

Control Diagram - 1 Of 2
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AL = PWM: AY = HS CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HUMAN MACHINE INTERFACE (HMI) SYSTEMS BUS.
| ITEM |
DESCRIPTION |
| 1 |
BECM
- Integrated in the MHEV
battery |
| 2 |
PCM |
| 3 |
DC/DC |
| 4 |
BCM/GWM |
| 5 |
IPC |
| 6 |
MHEV
battery electric cooling fan |
| 7 |
Ground |
| 8 |
Power supply |
| 9 |
BISG |
| 10 |
Electric supercharger |
