Viscous Cooling Fan (G2423670): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the clean air duct.
Refer to: AIR FILTER OUTLET PIPE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

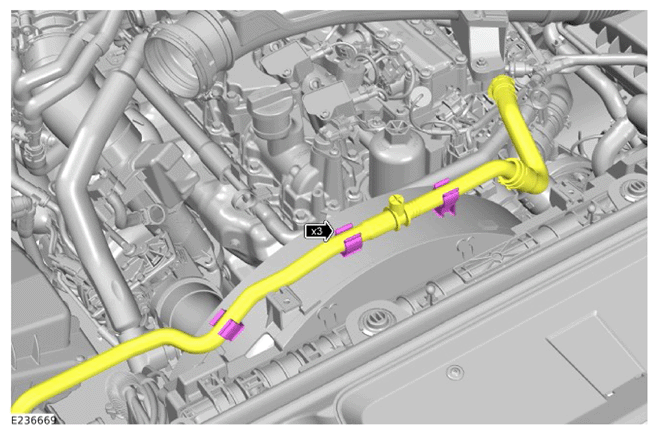

Release the coolant hose from the cooling fan shroud.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

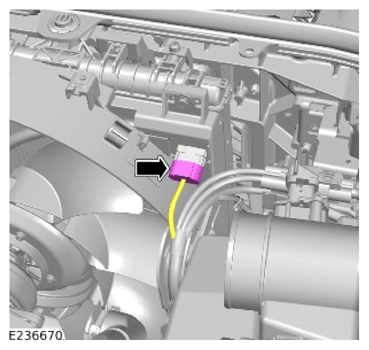

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

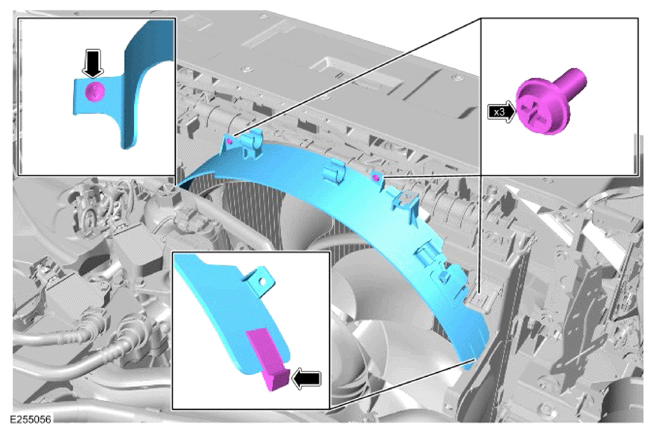

- Remove the 3 bolts.
- Remove the screw.
- Release the clip.
- Remove the viscous cooling fan upper shroud.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

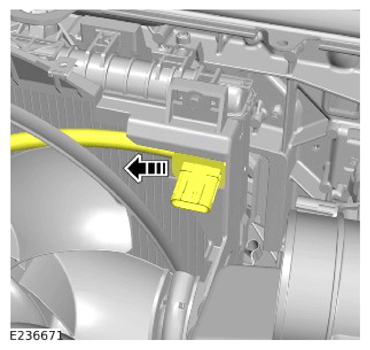

Release the cooling fan electrical connector.
CAUTION: Take extra care not to damage the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

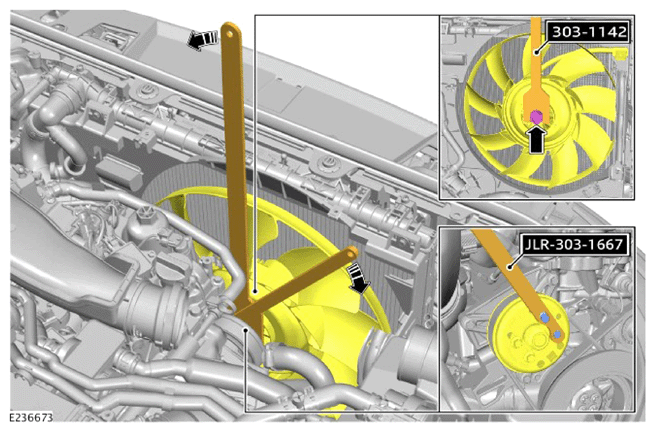

Use the special tools to remove the viscous cooling fan.

Special Tool(s): 303-1142 , JLR-303-1667
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

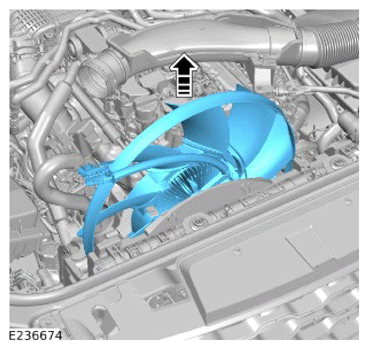

Remove the viscous cooling fan.
