Viscous Cooling Fan (G2423670): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

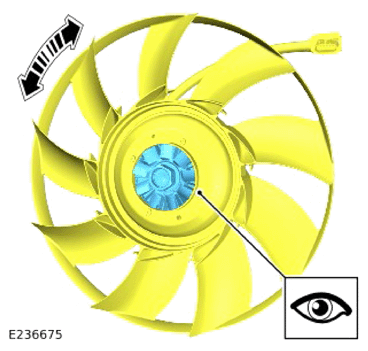

- Rotate the outer viscous cooling fan by hand in both directions.
- Visually check the inner viscous cooling fan for distortion or impact marks.
- If damaged, the viscous cooling fan assembly must be replaced.
Install the viscous cooling fan.
CAUTION: Take extra care not to damage the surrounding components.

Use the special tools to install the cooling fan.

Special Tool(s): 303-1142 , JLR-303-1667

Torque : 65 Nm
Install the cooling fan electrical connector to the cooling fan upper shroud.
- Install the cooling fan upper shroud.
- install and tighten the screw.
  Torque : 4 Nm
- Install and tighten the 3 bolts.
  Torque : 7 Nm
Connect the electrical connector.
Install the coolant hose to the cooling fan shroud.
Install the clean air duct.
Refer to: AIR FILTER OUTLET PIPE
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
