Front Electric Cooling Fan (G2320984): Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Be prepared to collect escaping coolant.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
- Remove the cooling module.
Refer to: COOLING MODULE

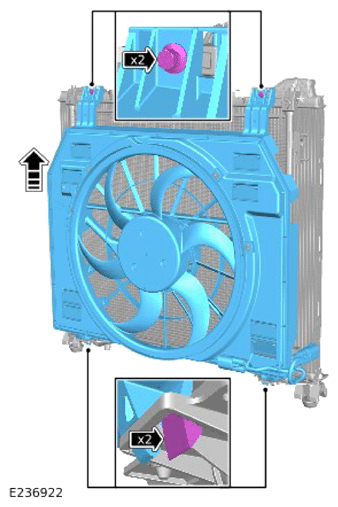

- Remove the 2 bolts.
- Release the 2 clips.
- Remove the front electric cooling fan.
