Charge Air Cooler Inlet Pipe (G2323052): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I6 3.0L PETROL
Drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

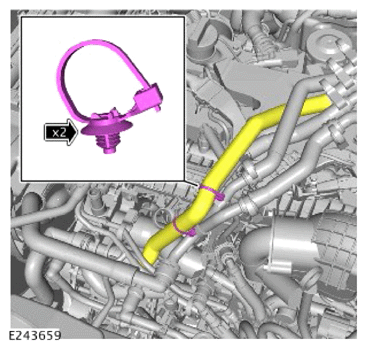

- Release the 2 clips.
- Remove the charge air cooler inlet pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

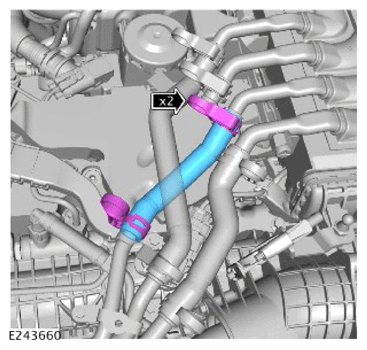

- Carefully release the 2 clips.
- Move aside the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

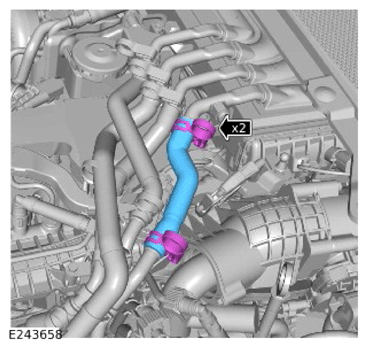

- Release the 2 clips.
- Remove the charge air cooler inlet pipe.
