Block Heater (G2344460): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD
Remove the front left wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

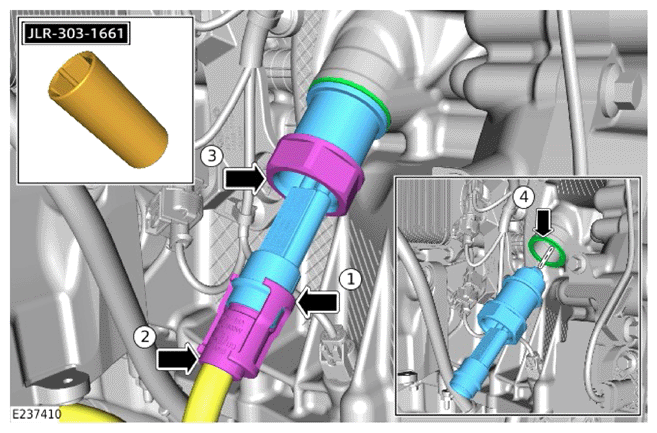

1. Release the clip.
2. Disconnect the electrical connector.
3. Use the special tool to remove the block heater.
  Special Tool(s): JLR-303-1661
4. Remove and discard the seal.
