Block Heater (G2344460): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: The block heater threads must be started by hand. Failure to follow this instruction may result in damage to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

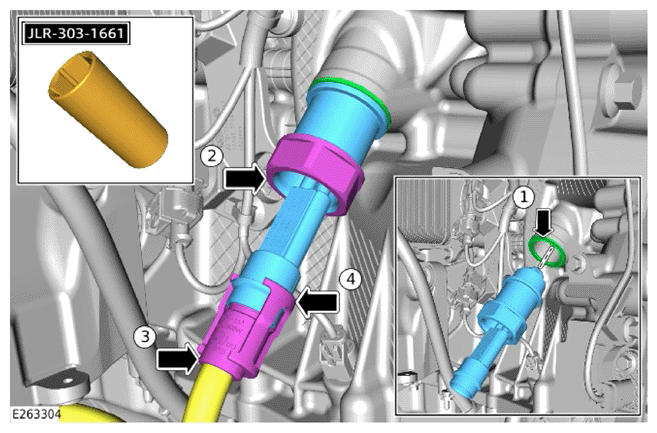

1. Install the new seal.
2. Install the block heater.
3. Use the special tool to tighten the block heater.
  Special Tool(s): JLR-303-1661

  Torque : 55 Nm
4. Connect the electrical connector.
5. Install the clip.
Install the front left wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER
Install the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD
Vacuum fill the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
