Auxiliary Radiator (G2453431): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations for right side components, left side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Partially drain the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
NOTE: Wheel shown removed for clarity.

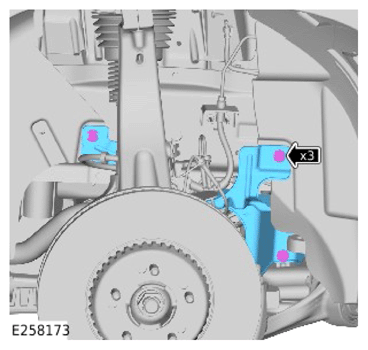

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 clips.
- Remove the front wheel arch inner moulding.

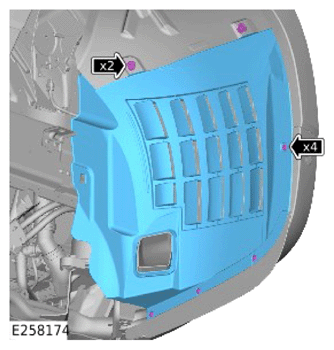

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 clips.
- Remove the 4 screws.
- Remove the wheel arch liner front section.

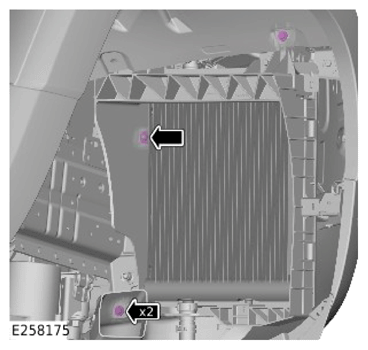

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the nut.
CAUTION: Make sure the auxiliary radiator is supported at all times.

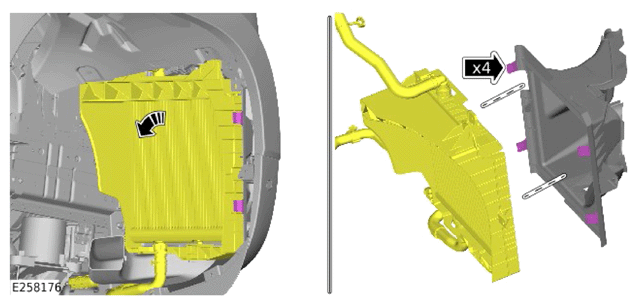

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the auxiliary radiator from the 4 clips.
WARNING: Be prepared to collect escaping engine coolant.

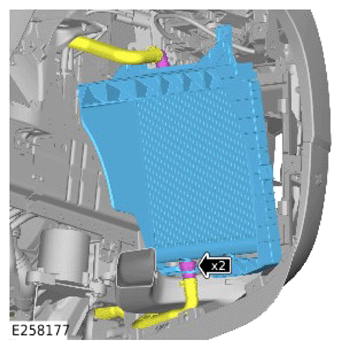

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 engine coolant hoses from the auxiliary radiator.
- Remove the auxiliary radiator.
NOTE: Do not disassemble further if the component is removed for access only.

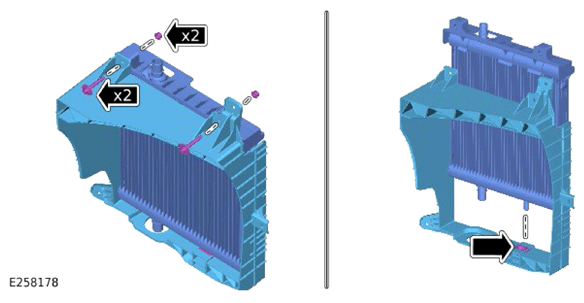

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts and bolts.
- Remove the auxiliary radiator housing.

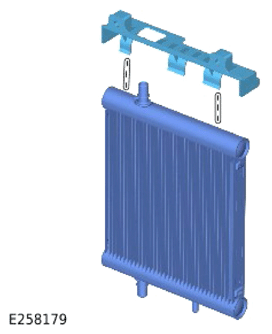

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bracket from the auxiliary radiator.
