Oil Pressure And Temperature Sensor
WARNING: This page is about a different variant/trim than selected.

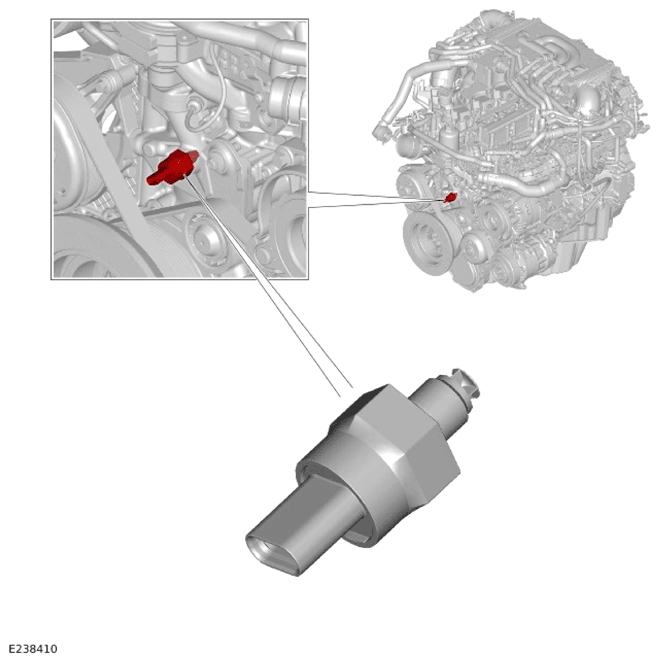

The oil pressure and temperature sensor is located at the front of the cylinder block. The sensor is located in a threaded hole in the cylinder block.
The oil pressure and temperature sensor has a 3-pin connector.
The sensor provides a Pulse Width Modulation (PWM) signal that contains information about the self-diagnosis of the sensor, pressure and temperature.
For additional information, refer to: ELECTRONIC ENGINE CONTROLS
