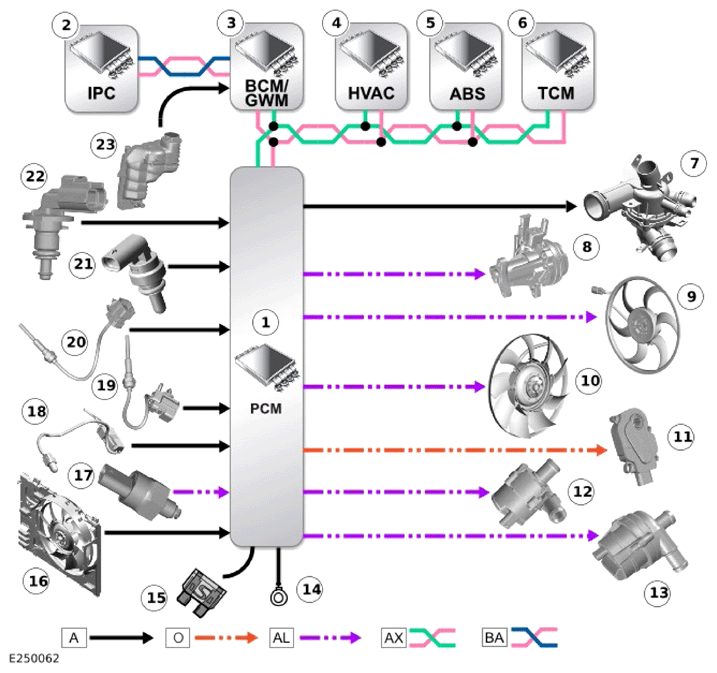

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AL = PULSE WIDTH MODULATION (PWM): AX = FLEXRAY: BA = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) HUMAN MACHINE INTERFACE (HMI) SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | HVAC control module (HVAC) |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Transmission Control Module (TCM) |
| 7 | Electric thermostat |
| 8 | Variable coolant pump |
| 9 | Electric cooling fan |
| 10 | Viscous cooling fan |
| 11 | Active grille motor |
| 12 | Auxiliary coolant pump |
| 13 | Charge air coolant pump |
| 14 | Ground |
| 15 | Power supply |
| 16 | Viscous cooling fan speed signal |
| 17 | Engine oil pressure and temperature sensor |
| 18 | Ambient Air Temperature (AAT) sensor |
| 19 | Cylinder block temperature sensor |
| 20 | Cylinder head temperature sensor |
| 21 | Engine Coolant Temperature (ECT) sensor |
| 22 | Radiator outlet temperature sensor |
| 23 | Engine coolant level sensor |
