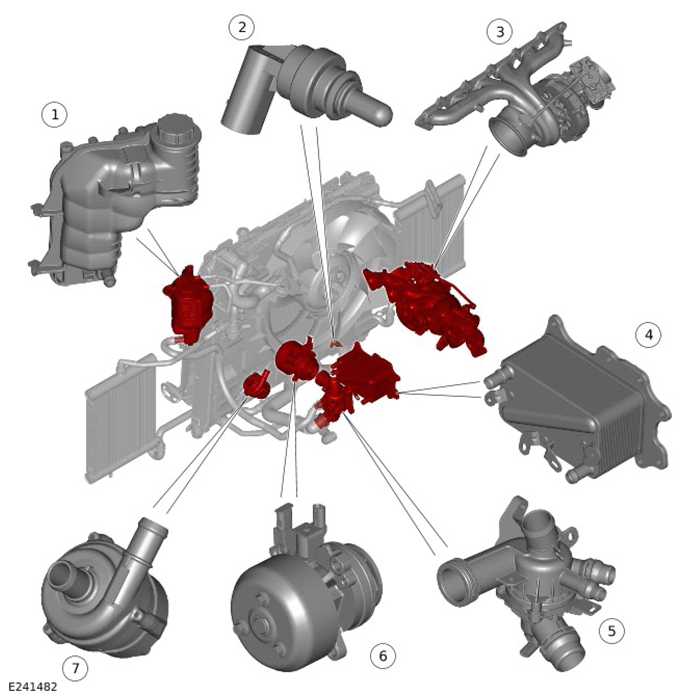

Component Location - 1 Of 2
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Coolant expansion tank |
| 2 |
Engine Coolant Temperature (ECT) sensor - Cylinder block outlet |
| 3 |
Turbocharger |
| 4 |
Oil cooler |
| 5 |
Electric thermostat |
| 6 |
Variable coolant pump |
| 7 |
Charge air coolant pump |
