Engine Ignition - INGENIUM I6 3.0L Petrol: Specifications
WARNING: This page is about a different variant/trim than selected.
SPARK PLUGS SPECIFICATION
| SPECIFICATION |
SPARK PLUG GAP |
| H4P3-12405-(ACB) |
0.6-0.65mm |

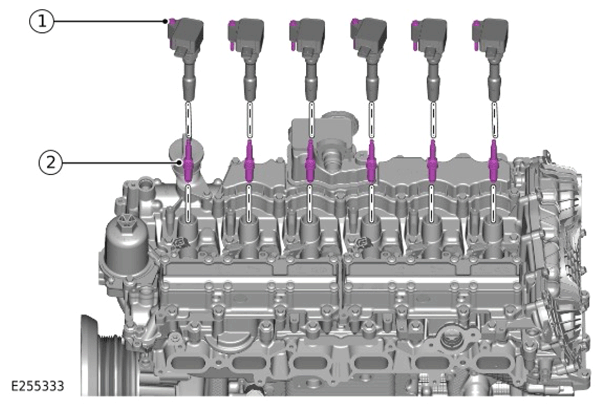

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| ITEM |
DESCRIPTION |
NM |
LB-FT |
| 1 |
Ignition coil bolts |
8 |
5.9 |
| 2 |
Spark Plugs |
23 |
17 |
