Ignition Coil-On-Plug (G2344516): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:
- Make sure that the spark plug ceramic insulator and terminal pin are wiped/cleaned dry using a soft clean cloth.
- Make sure that the ignition coil-on-plug rubber boot is pushed down fully over the spark plug ceramic insulator. Double check by installing the ignition coil-on-plug as usual and then pushing on the ignition coil-on-plug head gently for a second time to make sure that the ignition coil-on-plug rubber boot has seated correctly over the spark plug insulator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

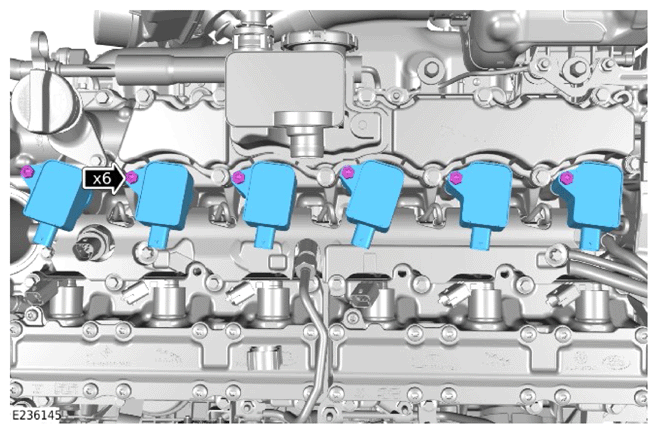

- Install the 6 ignition coil on-plugs.
- Install and tighten the 6 bolts.
  Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

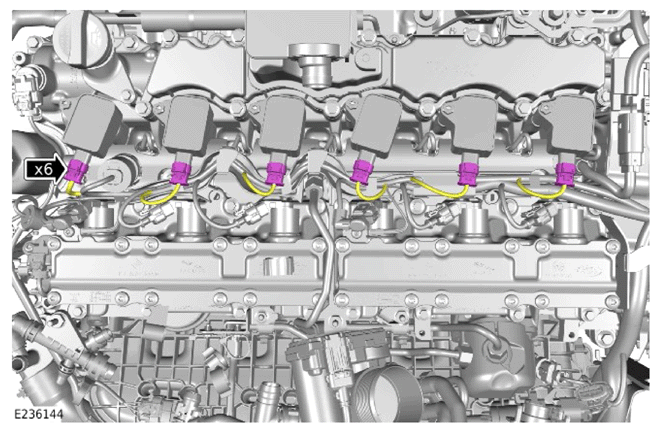

Connect the 6 electrical connectors to the 6 ignition coil on-plugs.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the breather hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the 2 Noise, Vibration and Harshness (NVH) components.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the fuel injector wiring harness electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the NVH material.
Reposition the charge air cooler in the correct location.
Refer to: CHARGE AIR COOLER SERVICE POSITION
Install the air filter outlet pipe.
Refer to: AIR FILTER OUTLET PIPE
Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
